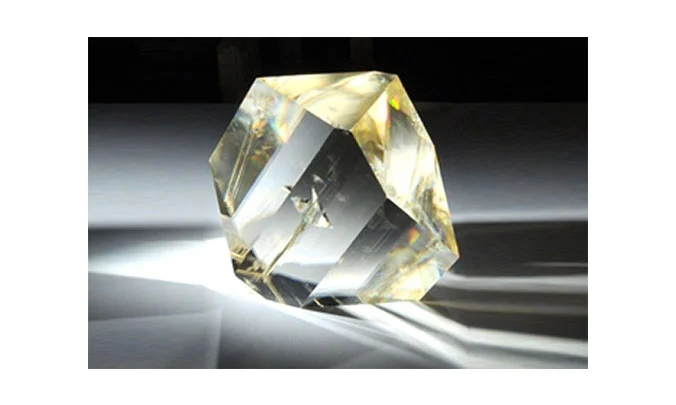

BBO Laser Nonlinear Crystals

BBO crystal is an important nonlinear optical crystal with combination of unique optical properties. Broad transmission and phase matching ranges, large nonlinear coefficient, high damage threshold and excellent optical homogeneity provide attractive possibilities for various nonlinear optical applications.

Applications of BBO Laser Nonlinear Crystals


  • Harmonic generation (up to a fifth) of pulsed Nd-doped crystal-based lasers

  • Frequency doubling, a tripling of pulsed Ti: sapphire, Yb-doped, dye lasers

  • Characterization of ultrashort laser pulses by FROG, XFROG, SPIDER, dispersion scan, and chirp scan methods

  • OPA and OPO

  • Pockels' Cell


Advantages of BBO Laser Nonlinear Crystals


  • Broad phase match range from 409.6 nm to 3500 nm;

  • Wide transmission region from 190 nm to 3500 nm;

  • Large effective second-harmonic-generation (SHG) coefficient;

  • High damage threshold;

  • High optical homogeneity with δn ≈10-6/cm;

  • Wide temperature bandwidth of about 55℃.


Specifications of BBO Laser Nonlinear Crystals


Tolerance of cutting angle

△θ≤±0.25°,△φ≤±0.25°

Tolerance of dimension

Dimension+0/-0.1 mm,L:±0.1mm

Flatness

λ/10 @ 632.8nm

Wavefront distortion

λ/8@ 632.8nm

Surface quality

10/5 per MIL-O-13830A

Parallelism

20″

Perpendicularity

5′

Clear Aperture:

> 90%

Chamfer:

< 0.1 mm @ 45°

Size

Upon customer request

Coating

AR/PR coating upon customer’s request

Damage Threshold

750MW/CM2 at 1064nm, TEM00, 10ns, 10Hz

Quality Warranty Period

One year under proper use


Optical and Nonlinear Properties of BBO Laser Nonlinear Crystals


Transparency Range

190-3500nm

SHG Phase Matchable Range

409.6-3500nm (Type I) 525-3500nm (Type II)

Therm-optic Coefficient (/℃, λ in μm)

dno/dT=-16.6x 10^-6/℃
dne/dT=-9.3x 10^-6/℃

Absorption Coefficients

<0.1%/cm(at 1064nm) <1%/cm(at 532nm)

Angle Acceptance

0.8mrad·cm (θ, Type I, 1064 SHG)
1.27mrad·cm (θ, Type II, 1064 SHG)

Temperature Acceptance

55℃·cm

Spectral Acceptance

1.1nm·cm

Walk-off Angle

2.7° (Type I 1064 SHG)
3.2° (Type II 1064 SHG)

NLO Coefficients

deff(I)=d31sinθ+(d11cos3Φ- d22 sin3Φ) cosθq
deff (II)= (d11 sin3Φ + d22 cos3Φ) cos2θ

Non-vanished NLO susceptibilities

d11 = 5.8 x d36(KDP)
d31 = 0.05 x d11
d22 < 0.05 x d11

Sellmeier Equations (λ in μm)

no²=2.7359+0.01878/(λ²-0.01822)-0.01354λ²
ne²=2.3753+0.01224/(λ²-0.01667)-0.01516λ²

Electro-optic coefficients

γ22 = 2.7 pm/V

Half-wave voltage

7 KV (at 1064 nm,3x3x20mm3)

Resistivity

>10^11 ohm·cm

Relative Dielectric Constant

εs11/εo:6.7 εs33/εo:8.1 Tan δ<0.001


Physical Properties of BBO Laser Nonlinear Crystals


Crystal Structure

Trigonal,Space Group R3c

Lattice Parameter

a=b=12.532Å,c=12.717Å,Z=6

Melting Point

About 1095℃

Mohs Hardness

4

Density

3.85 g/cm3

Refractive indices

no = 1,6551; ne = 1,5426

Thermal Conductivity

⊥c: 1.2W/m/K; //c: 1.6W/m/K

Thermal Expansion Coefficients

α11=4 x 10^-6/K; α33=36 x 10^-6/K
