Plastic Scintillators

Plastic scintillators have the advantages of fast time response, low cost, high light output, sensitivity to X-rays, gamma-rays, alpha-rays, beta-rays and fast neutrons. These plastic scintillator materials also have an excellent durability, and by the mold and other methods, they could be made into almost any shape you want, including cast sheets, blocks, rods, cylinders and thin films. Plastic scintillators are now widely used in a broad range of radiation detection applications.

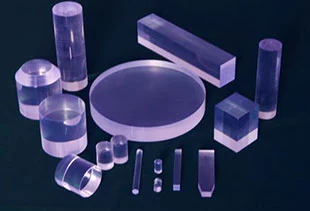

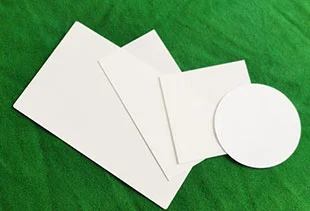

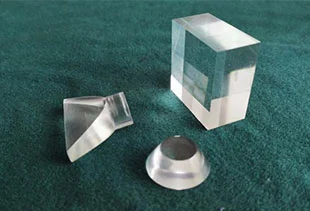

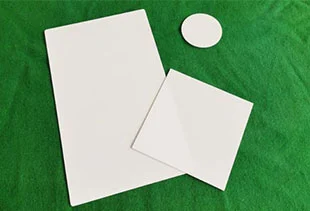

OST Photonics is able to supply SPM100 light guide and various plastic scintillator materials for different applications: SP101 plastic scintillator for gamma-ray detection, SP102 plastic scintillator for beta- Ray detection, SP121 plastic scintillator for alpha-ray and beta-ray detection, SP122 plastic scintillator for low energy gamma-ray detection and SP123 plastic scintillator for alpha-ray detection. SPM100 light guide is an optical transmission device made of PMMA material imported from Germany. If you want to know the price and properties of plastic scintillators or if you are interested in purchasing plastic scintillators, please feel free to contact OST Photonics, we are a professional plastic scintillator manufacturer.


Types of Plastic Scintillators

Advantages and Applications of Plastic Scintillators



OST Photonics offers a wide range of plastic scintillator materials. Our plastic scintillator materials are designed for various of radiation detection applications. With good light output and fast time response, plastic scintillators are ideal for various industries. Whether you are in need of purchasing plastic scintillators or seeking information on the prices of plastic scintillators, we have got you covered.


The applications of plastic scintillators are extensive, making them suitable for portal vehicle radiation monitoring system, portable radioactive instrument, and high energy physics experiment. The exceptional properties of our plastic scintillators, such as their high sensitivity and fast time response, ensure accurate and reliable results. Explore our product lineup to discover the perfect plastic scintillator solution for your needs.



Composition of Plastic Scintillator


(1)plastic matrix


The plastic matrix is a crucial component of plastic scintillators, accounting for over 97% of the material and having a significant impact on its physical and chemical properties. Aromatic compounds are the most common type of matrix used in plastic scintillators due to their necessary role in fluorescence absorption and emission processes. These aromatic matrices can be categorized into polystyrene, polyester, polysiloxane, polyepoxy resin, and polyvinyl alcohol. Polystyrene (PST) and polyvinyl toluene (PVT) are among the earliest matrices used with high detection efficiency. Non-aromatic matrices such as polymethyl methacrylate (PMMA), composed of carbon-oxygen double bonds and ester-bonded oxygen atoms, have weaker fluorescence intensity but better transparency than polystyrene. When used in combination with an aromatic solvent at a certain proportion, PMMA can improve both mechanical properties and transparency.


(2)scintillating material


The luminescence efficiency of the matrix in the plastic scintillator is very low, and when the scintillator is subjected to nuclear radiation (α, β, γ rays, etc.) or high-energy particles, if only the plastic matrix is used, most of the electron excitation energy will be released in non-radiative form and affect the detection efficiency. At the same time, the emission spectrum of the plastic matrix is primarily in the range of 300-350 nm. However, this emission wavelength is too short to match with ordinary photomultiplier tubes which have a low quantum efficiency in this band. Therefore, it becomes necessary to add scintillation materials to increase light yield in plastic scintillators. Scintillation materials can be divided into primary scintillation materials and wave shifting agents that should possess good solubility and temperature resistance (able to withstand temperatures between 100-170 °C), chemical stability (must coexist with all other components without being vulnerable to free radical attack during polymerization process), light resistance and low cost. Primary scintillation material refers to an aromatic compound which serves as the main luminous material with a mass fraction usually ranging from 0.3-4% and fluorescence emission wavelength between 350-400 nm. On the other hand, wave shifting agents are responsible for shifting maximum luminous wavelength towards a range that matches photomultiplier tubes; their mass fraction is lower than that of primary scintillation substance typically falling within 0.001-0.1wt %. Additionally, ultraviolet absorption spectrum of primary scintillation material should coincide with fluorescence spectrum of plastic matrix while ultraviolet absorption spectrum of wave shifting agent should match fluorescence spectrum of primary scintillation material so as to minimize energy loss and improve detection efficiency.




OST Photonics Popular Plastic Scintillators Material




FAQs of Plastic Scintillators

Is it possible to provide reflective and light shielding layers for plastic scintillator?

Yes, we are able to provide Aluminum foil as the reflective layer and black PVC material as the light shielding layer.

What regular sizes are available?

50 x 500 x 1000 mm/1200 mm, 50 x 700 x 1400 mm, 1200 x 500 x 84 mm, 1000 x 500 x 100 mm, 200 x 200 x 0.5 mm/1.0 mm, 300 x 300 x 0.5 mm/1.0 mm, D50 x 1000 mm/2000 mm etc.

Is it possible to provide PMT and electronics for the plastic scintillator?

Yes, we are able to provide different models of PMTs and electronics (voltage dividers, HV modules, pre-amplifiers, etc.) for the plastic scintillator upon requests.
