sp101 plastic scintillator
sp101 plastic scintillator
plastic scintillator for gamma detection

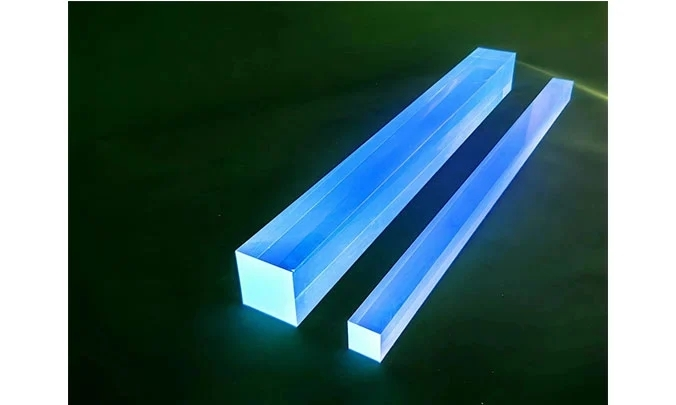

SP101 Plastic Scintillators

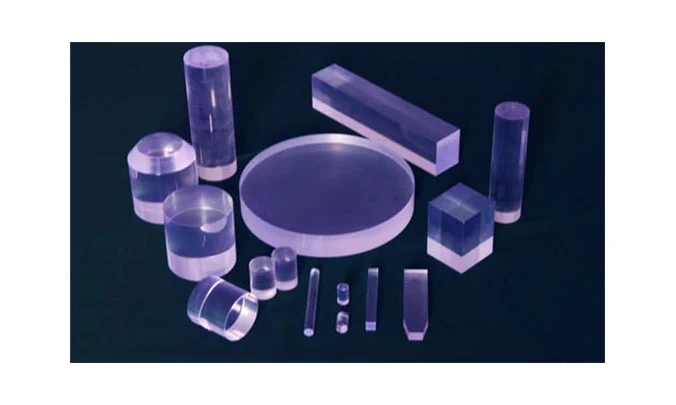

SP101 plastic scintillators are blue light plastic scintillators which can be used to measure gamma-ray, X-ray, etc. They are relatively inexpensive compared to other scintillators and can be manufactured to very large sizes. SP101 can be made into different shapes, such as: plate, slice, block, bar, cylinder, ring, etc., they can also be customized according to the user's requirements, and we can provide different reflective materials and encapsulation.


OST Photonics can also provide plastic scintillator detectors, such as bonding (coupling) the plastic scintillator with the light guide, photomultiplier tube, silicon photodiode, etc., and we can install the metal or non-metal shell upon requests. In addition, electronics are also available upon your request.


Application of SP101 Plastic Scintillators


  • Portal radioactivity detection system

  • Isotope gauge

  • Portable radioactive instrument

  • Regional radiation monitoring system

  • High energy physics


Advantages of SP101 Plastic Scintillators


  • Low cost

  • High light output

  • Fast rise time and decay time

  • High resistance to radiation

  • No hygroscopy

  • Easily fabricated and machined

  • Can be manufactured to very large sizes


Properties of SP101 Plastic Scintillators



Material

polystyrene

Density (g/cm3)

1.023

Refractive index

1.58

Light output relative to anthracene+

64%

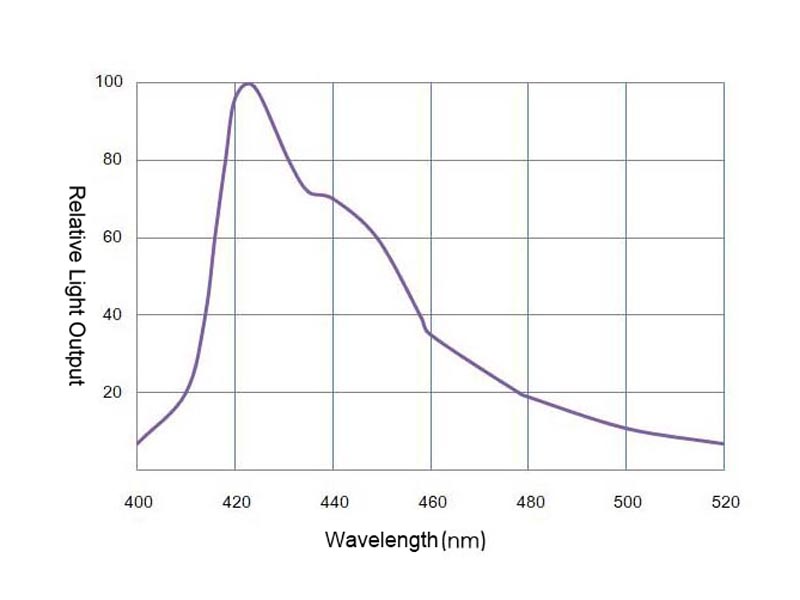

Peak Emission (nm)

423

Scintillation decay time (ns)

2.4

Rise time (ns)

0.9

Light attenuation length (cm)

210

Softening temperature (℃)

75

Operting temperature (℃)

-40~55

Energy detection range

50KeV~3MeV
