low energy gamma ray detection
low energy gamma ray detection

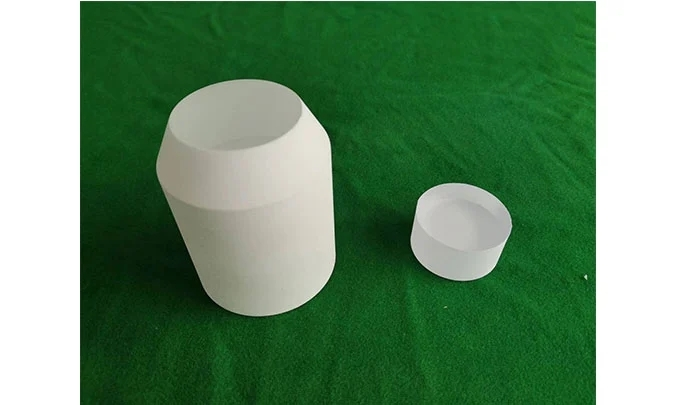

SP122 Plastic Scintillators

SP122 plastic scintillators are used for low energy gamma-ray detection. SP122 plastic scintillator is actually the SP101 plastic scintillator with a certain thickness of ZnS(Ag) coating on the surface, the thickness of ZnS(Ag) coating is 8-10 mg/cm2. SP122 plastic scintillator can detect the gamma-ray with energy as low as 40KeV. We use advanced spraying process to ensure excellent homogeneity and uniformity of the SP122 plastic scintillator.


OST Photonics can supply different shape of SP122 plastic scintillator upon your request.


Applications of SP122 Plastic Scintillators


  • Portable detection instrument

  • Pedestrian radioactivity monitoring system


Advantages of SP122 Plastic Scintillators


  • Suitable for low energy γ-ray detection (energy as low as 40KeV)

  • Good uniformity

  • Excellent homogeneity

  • Various shapes available


Properties of SP122 Plastic Scintillators


Material

SP101(Polystyrene)

ZnS(Ag)

Density(g/cm3)

1.023

4.1

Refractive index

1.58

-

Light output(%) of NaI(Tl)

64%

280%

The wavelength of max emission lm(nm)

423

450

Decay time(ns)

2.4

200

Operating temperature(℃)

-40 - 55

-40 - 55

Coating thickness(mg/cm2)

-

8 - 10
