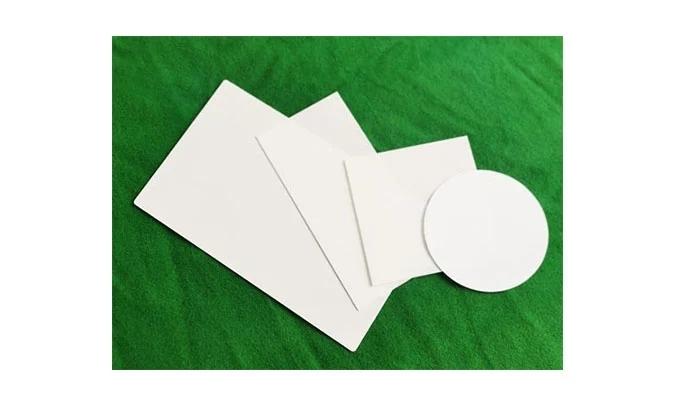

SP121 Plastic Scintillators

SP121 plastic scintillators are used for Alpha-ray and Beta-ray measurement. SP121 plastic scintillator is actually SP102 coated with a certain thickness of ZnS(Ag) on the surface, the thickness is 4.5 mg/cm2. The SP102 is used to measure Beta-ray, ZnS(Ag) is used to measure Alpha-ray, and the appropriate thickness of the ZnS(Ag) coating can just absorbs the Alpha-ray. We use advanced spraying technology to make the ZnS(Ag) coating, which makes the SP121 scintillators has an excellent homogeneity and uniformity.


Application of SP121 Plastic Scintillators


  • Surface contamination detector


Advantages of SP121 Plastic Scintillators


  • High detection efficiency

  • Excellent homogeneity

  • Good uniformity


Properties of SP121 Plastic Scintillators


Material

SP102(polystyrene)

ZnS(Ag)

Density (g/cm3)

1.023

4.1

Refractive index

1.58

-

Light output relative to anthracene+

64%

280%

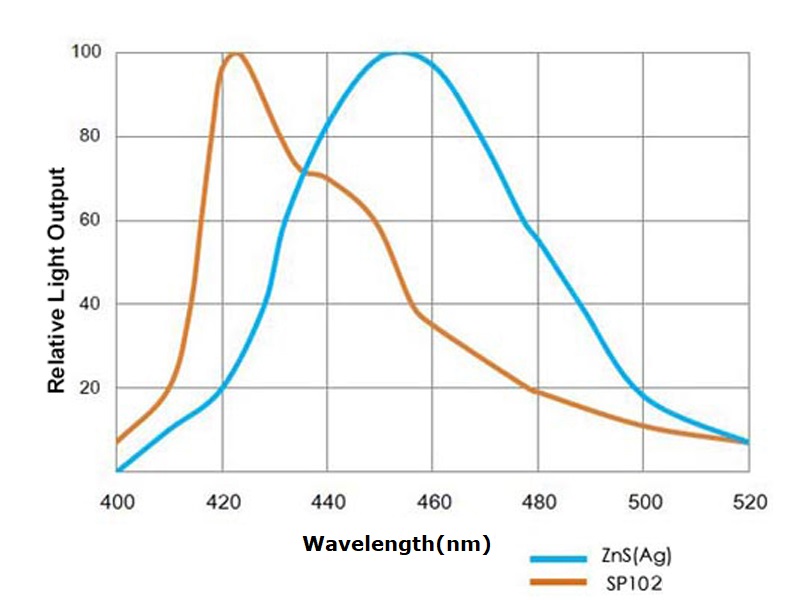

Wavelength of max emission lm (nm)

423

450

Decay time (ns)

2.4

200

Operting temperature (℃)

-40~55

-40~55

Coating thickness (mg/cm2)

-

4.5
