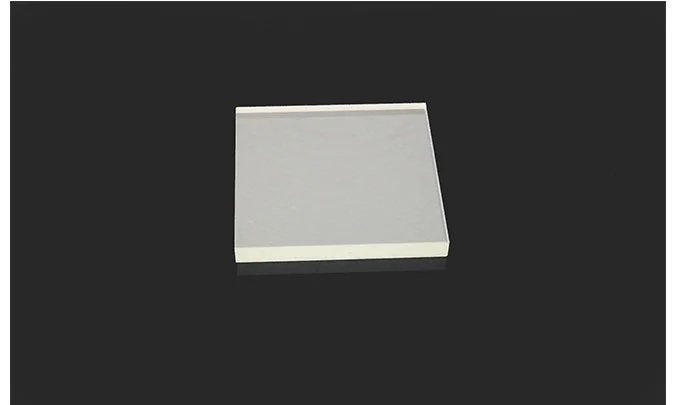

cdwo4 substrate
cdwo4 substrate

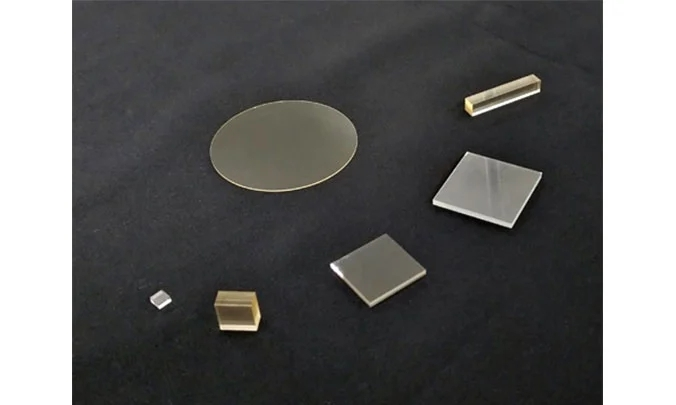

cdwo4 crystal substrates

CdWO4 Substrates

Cadmium tungstate (CdWO4 or CWO) is a monoclinic crystal with a wolframite structure and has good comprehensive scintillation properties. The peak scintillation wavelength of CdWO4 crystal is 480 nm (with emission range between 380-660 nm), and the efficiency is 13000 photons/MeV, when it is hit by gamma rays and x-rays. Because of high luminous efficiency, short afterglow time, large X-ray absorption coefficient, strong resistance to radiation damage, and high material density, CdWO4 crystal is widely used in nuclear inspection, γ camera, X-CT, High energy physics, and container inspection, etc. The combined application of CdWO4 crystal and B4C can form a compact gamma-ray and neutron radiation detector. At the same time, CdWO4 crystals can be used to detect rare nuclear processes, such as double β decay, other rare α, and β decay.


OST Photonics offers high quality CdWO4 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of CdWO4 Substrates


  • Industrial computed tomography (CT) scanners

  • Medical computed tomography (CT) scanners

  • Security inspection

  • High energy physics



Advantages of CdWO4 Substrates


  • Low afterglow

  • Relatively high light yield

  • Strong radiation resistance

  • High density

  • high atomic number

  • No radioactive background



Ability of CdWO4 Substrates


  • Orientation:<010>,<100>, etc.

  • Maximum Size: ɸ80mm x 200mm

  • Dimension: 10x10mm, 10x5mm, 5x5mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrate, blanks, linear or 2-D array and customized optics



Specification and Properties of CdWO4 Substrates


Crystal Structure

Monoclinic

Lattice Constant

a = 5.029 Å ; b = 5.859 Å ; c = 5.074 Å

α=γ= 90°, β= 91.47°

Density

7.9 g/cm3

Melting Point

1325℃

Hardness

4.5 Mohs

Thermal Expansion Coefficient

6.39×10^-6 /k @<100>; 1.09×10^-5 /k @<010>

Refractive Index

2.3@ 633 nm

Orientation

<010>,<100>, etc.

Orientation Tolerance

±0.5° or better

Dimension

10x10mm, 10x5mm, 5x5mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Color and Appearance

Yellow to colourless depend on annealing

Package

Class 100 clean bag, Class 1000 super clean room
