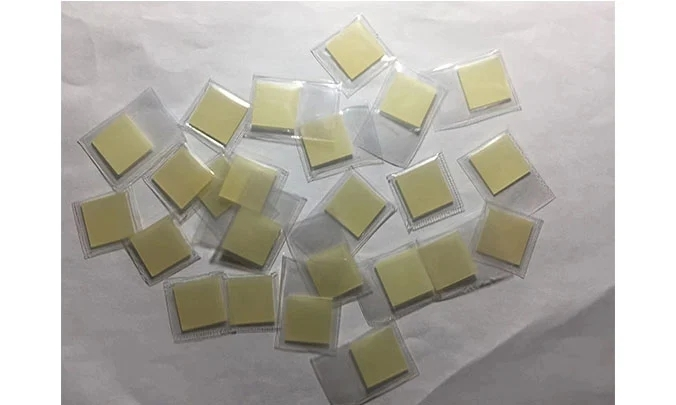

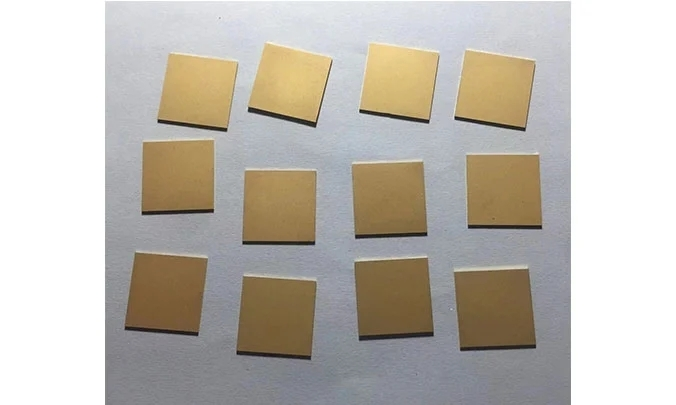

PMN-PT Substrates

PMN-PT ((1-x)[Pb(Mg0.33Nb0.67)O3]-x[PbTiO3]) is a new piezoelectric crystal material. It has the characteristics of high voltage electrical constant, large electromechanical coupling coefficient, high dielectric constant, low loss, excellent nonlinear optical performance and pyroelectric performance. In particular, the piezoelectric performance is about 10 times higher than that of ordinary piezoelectric materials, making it more widely used than traditional PZT piezoelectric ceramics, it can not only meet the application needs and become the core material of a new generation of high-performance piezoelectric transducers, nonlinear optical devices and photoelectric detection devices (such as infrared detectors), but also provide a good research carrier for researchers.


OST Photonics offers high quality PMN-PT substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements. In addition, we can also coat Ni/Al/Ag/Au electrode on PMN-PT substrates and provide polarization services.


Application of PMN-PT Substrates


  • Piezoelectric transducers

  • Nonlinear optical devices

  • Infrared detectors


Advantages of PMN-PT Substrates


  • High voltage electrical constant

  • Large electromechanical coupling coefficient

  • High dielectric constant

  • Excellent nonlinear optical and pyroelectric performance


Ability of PMN-PT Substrates


  • Orientation:<100>,<110>,<111>, etc.

  • Dimension: 1”, 2”, 5x5mm, 10x10mm, 20x20mm, etc.

  • Thickness: 0.5mm, 1.0mm, 2mm, 5mm, 10mm, etc.

  • Available items: wafers, substrates, blanks and customized optics


Specification and Properties of PMN-PT Substrates



Formula

(1-x)[Pb(Mg0.33Nb0.67)O3]-x[PbTiO3]

Structure

Tetragonal

Lattice constant

a=4.024 Å (R3m)

Melting point

1280 ℃

Density

8.1 g/cm3

Hardness

3.5 Mohs

Thermal Expansion Coefficient

10.4x10^-6/K

Piezoelectric Coefficient (d33)

800-2500 pC/N

Dielectric Constant (polarization)ε

3500~7000@1KHz

Dielectric Loss (tgδ%)

<0.9

Coupling Constant

k33 (Longitudinal mode) >92%

kt (Thickness mode) 59-62%

k33’ (Beam mode) 84-88%

Curie Temperature

135-150 ℃

Growth Method

Bridgman

Coercive Electric Field

2.0-3.0 kv/cm

Orientation

<100>,<110>,<111>, etc.

Orientation Tolerance

±0.5° or better

Dimension

1”, 2”, 5x5mm, 10x10mm, 20x20mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, 2mm, 5mm, 10mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Package

Class 100 clean bag, Class 1000 super clean room
