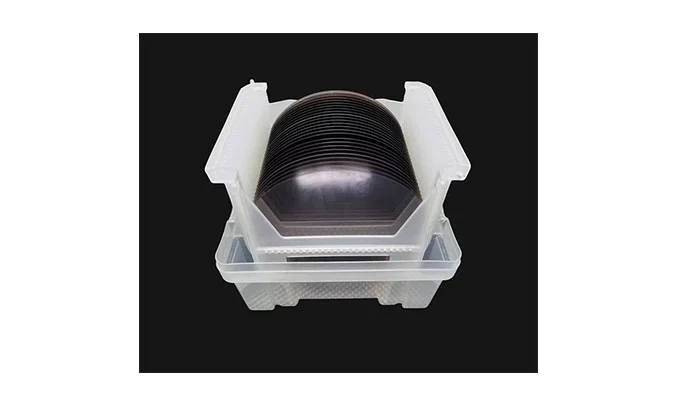

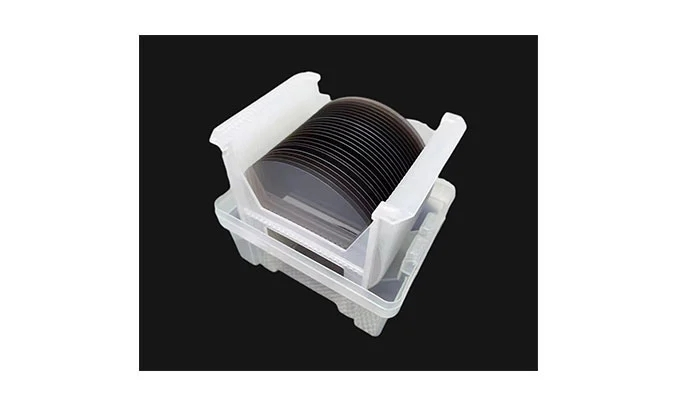

SAW Grade Lithium Tantalate Wafers

OST Photonics offer a variety of sizes and thicknesses of SAW grade Lithium Tantalate (LiTaO3) wafers, with wafer diameters ranging from 3 inch to 6 inch, the thickness can be customized according to your requirements (generally above 0.18 mm). The orientations can be X/Y/Z/X112Y/Y36/Y42/Y48 etc. SAW grade pyroelectric free black LiTaO3 wafers and Fe doped LiTaO3 are also available upon request.



Application of SAW Grade Lithium Tantalate Wafers


  • RF type SAW devices

  • High frequency filters

  • pyroelectric detectors.


Advantages of SAW Grade Lithium Tantalate Wafers


  • Stable mechanical properties

  • Stable chemical properties

  • High optical damage threshold

  • Good piezoelectric and pyroelectric properties


Ability of SAW Grade Lithium Tantalate Wafers


  • Diameter: 3”, 4”, 6”

  • Orientations: X, Y, Z, X112Y, Y36, Y42, Y48, etc.

  • Thickness: 0.25mm, 0.35 mm, 0.5 mm, 1.0 mm etc.

  • Available items: crystal wafers, black reduced wafers, Fe doped LiTaO3 wafers, boules, blanks and customized optics


Product Parameters of SAW Grade LiTaO3 Wafers


Material

LiTaO3 single crystal

Curie Temp

603±2.0℃

Reduction

Standard Black - 0.9E+11 ~ 9.0E+11

Super Black - 1.0E+10 ~ 9.0E+10

Cutting Angle

X/Y/Z/X112Y/Y36/Y42/Y48 etc

Orientation Tolerance (±)

≤15′

Diameter

3”/4”/6”

Diameter Tolerance (±)

≤0.20 mm

Thickness

0.18 ~ 0.5mm or more

Thickness Tolerance (±)

≤0.025 mm

Primary Flat Length

22mm/32mm/42.5mm

LTV (5mmx5mm)

<1.5 µm

TTV

<1~5 µm

BOW

± (25~40 um)

Warp

<= 35 µm

PLTV(<0.5um)

≥98%(5mm*5mm) with 2mm edge excluded

Orientation Flat

According to our standards or your requests

Surface Type

Single side polished(SSP)/double sides polished(DSP)

Polished Side Ra

<0.5nm

Back Side Criteria

General is 0.2-0.5 um or as customized

Edge Criteria

Compliant with SEMI M1.2 Standard/refer to IEC62276

Fe doped

Fe doped for saw grade LiNbO3 wafers

Wafer Surface Criteria

Transmissivity

General:5.9x10^-11<s<2.0*10^-10 at 25℃

Contamination

None

Particles φ>0.3 um

<= 30

Scratch , Chipping

None

Defect

No edge cracks, scratches, saw marks, stains

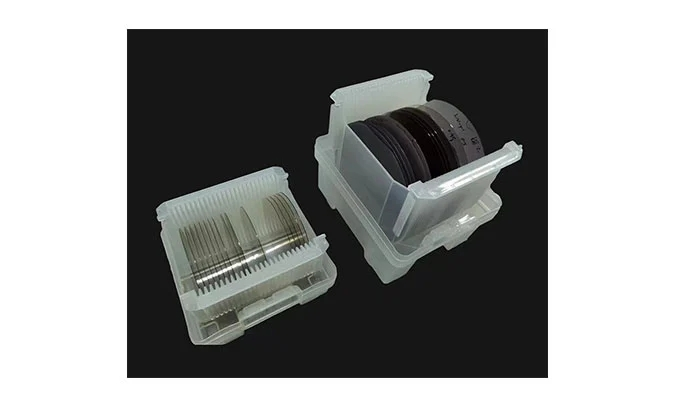

Packaging

Qty/Wafer box

25pcs per box

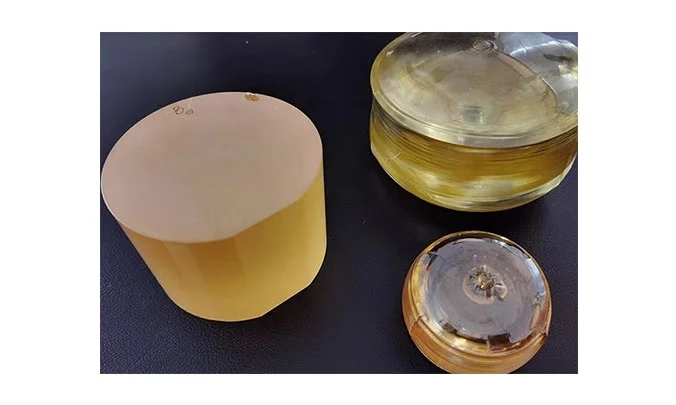

Product Parameters of SAW Grade LiTaO3 Boules


Material

Grade

Diameter

Growth direction

LiTaO3

SAW

3”/4”/6”

X/Y/Z/X112Y/Y36/Y42/Y48 etc

Fe:LiTaO3

SAW

3”/4”/6”

X/Y/Z/X112Y/Y36/Y42/Y48 etc


Properties of SAW Grade Lithium Tantalate Wafers


Crystal Structure

Trigonal, Space group R3c, Point group 3m

Lattice Constant

a=5.154Å, c=13.781Å

Melting Point

1650℃

Curie Temperature

603℃

Mohs Hardness

5.5

Density

7.46g/cm3

Dielectric Constants

ε11/ε0:51.7

ε33/ε0:44.5

Elastic Stiffness Coefficients

CE11:2.33(x10^11 N/m2)

CE33:2.77(x10^11 N/m2)

Piezoelectric Strain Constants

d22:2.4(x10^-11 C/N)

d33:0.8(x10^-11 C/N)

Transmission range

400-4500 nm

Electro-optical coefficients

r33=30.4pm/V

Refractive index at 632.8nm

no=2.176, ne=2.180
