YSO(Ce) Scintillators

YSO(Ce) cerium doped yttrinm silicate belongs to monoclinic rare earth orthosilicate crystal, which has a peak emission wavelength of 420nm. YSO(Ce) scintillators have a similar decay time to LYSO(Ce) (50-70ns), but it has no background (Lutecium), which is critical for precise detection fields. YSO(Ce) crystal has a high density of 4.45g/cm^3, and high radiation resistance, it has good mechanical properties and is non-deliquescent. YSO(Ce) scintillator crystals are used in high energy, nuclear and space physics, nuclear medicine, Positron emission tomography (PET), and industrial Non-Destructive Test (NDT) applications.


OST Photonics can supply YSO(Ce) crystals, YSO(Ce) scintillation screens and YSO(Ce) arrays upon request. We can offer a variety of design options and reflector materials to optimize array performance and ensure the array's high light output, excellent uniformity and minimal crosstalk.


Applications of YSO(Ce) Scintillators (YSO:Ce Scintillators)


  • Positron emission tomography (PET)

  • Nuclear medicine

  • Industrial NDT

  • High energy, nuclear and space physics


Advantages of YSO(Ce) Scintillators (YSO:Ce Scintillators)


  • Fast decay time

  • No background radiation

  • Mechanically robust characteristics, no cleavage planes, and are non-hygroscopic

  • Good rad-hard properties

  • High density


The Ability of OST Photonics (YSO:Ce Scintillators)


  • Maximum Size: ɸ80mm x 160mm

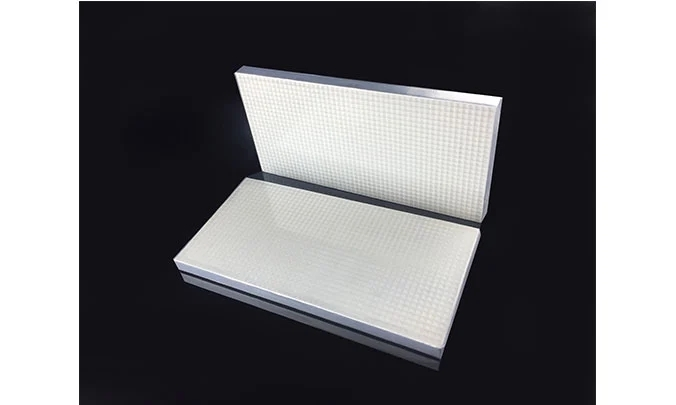

  • Available items: monolithic crystal, scintillation screen, pixellated array


Scintillation Screen Design Options of YSO(Ce) Scintillators (YSO:Ce Scintillators)

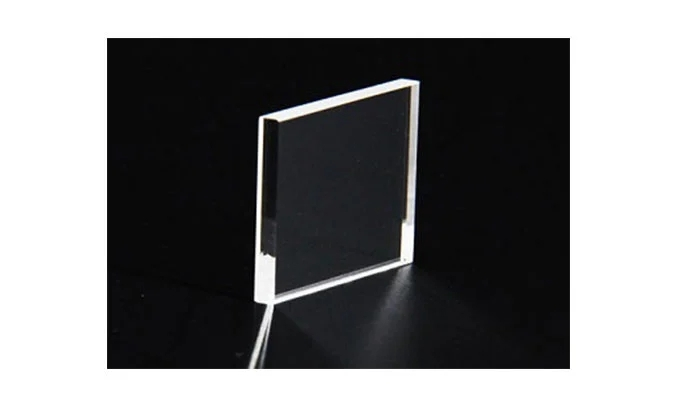

  • Freestanding ultra-thin scintillation screen.

  • Ultra-thin scintillation screens can be coupled to a substrate with optical adhesives in order to achieve better optical readout.

  • Scintillation screens can be inserted into frames(Aluminum, Stainless steel) for easier manipulation.

  • We can provide customized marking such as a grid, cross or scale on the surface of the screen for easier beam visualization.

  • We can provide various of coating on the surface of the screen upon request, such as reflection coatings(Al, Au, Ag, etc.), AR coating, diffusion painting(TiO2, Al2O3), and conductive coatings(Al, ITO, C).


Properties of YSO(Ce) Scintillators (YSO:Ce Scintillators)


Density (g/cm3)

4.45

Decay Constant (ns)

50-70

Wavelength of Emission Max (nm)

420

Relative Light Output of NaI(Tl)

70%

Melting Point (K)

2000

Refractive Index of Emission Max

1.8

Hygroscopicity

none

Cleavage

none
