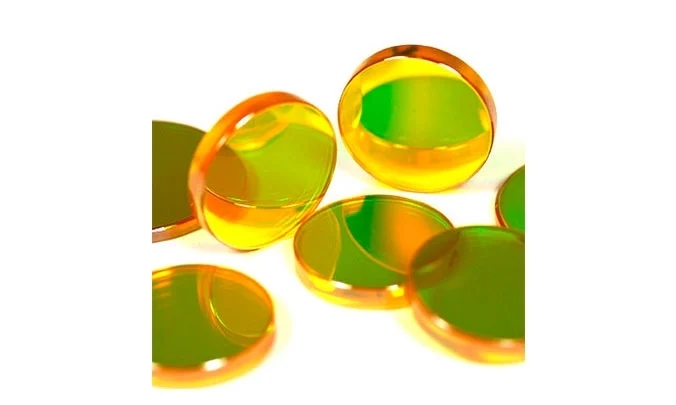

ZnS Polycrystals Window

Zinc Sulfide (ZnS) is an infrared transmitting material with homogeneity of refractive index. It has excellent performance in image transmission between 8-12μm and has high transmission performance in the infrared band. But absorption and dispersion will enhance when the wavelength gets short. The Zinc Sulfide Delfa use is a sort of inert material which is insoluble in water. Due to its high purity, moderate density, and easy to be processed, Zinc Sulfide is widely used in infrared windows, domes, and other infrared components.


OST Photonics offers ZnS windows made from FLIR grade ZnS and water-clear grade ZnS. Various customized shapes and dual-surface anti-reflective coatings are available.

Application of ZnS Polycrystals Window


  • Infrared windows and lenses

  • Infrared detector

  • Laser range finder


Advantages of ZnS Polycrystals Window


  • High purity

  • Excellent mechanical strength and chemical inertness for harsh environments (harder than ZnSe Windows)

  • Insoluble in water

  • Moderate density


Specifications of ZnS Polycrystals Window


Materials

CVD ZnS polycrystals, FLIR grade or water-clear grade

Size

Upon the customer’s request

Diameter Tolerance

+0/-0.1 mm

Thickness Tolerance

+/-0.1 mm

Aperture

>90%

Surface Quality

60/40~10/5 (S/D)

Parallelism

<1 arc minute

Chamfer

0.2-0.5mmx45°

Coating

Uncoated or upon customer’s request


Properties of ZnS Polycrystals Window


Transmission Range

0.37 to 13.5 μm

Refractive Index

2.20084 at 10 μm

Reflection Loss

24.7% at 10 μm (2 surfaces)

Absorption Coefficient

0.0006 cm-1 at 3.8 μm

Reststrahlen Peak

30.5 μm

dn/dT

+38.7 x 10^-6  /°C at 3.39 μm

Density

4.09 g/cc

Class/Structure

HIP poly-crystalline cubic, ZnS, F42m

Molecular Weight

97.43

Melting Point

1827°C

Thermal Conductivity

27.2 W m-1 K-1 at 298K

Thermal Expansion

6.5 x 10^-6 /°C at 273K

Hardness

Knoop 160 with 50g indenter

Specific Heat Capacity

515 J Kg-1 K-1

Dielectric Constant

88

Youngs Modulus

74.5 GPa

Apparent Elastic Limit

68.9 MPa (10,000 psi)

Poisson Ratio

0.28

Solubility

65 x 10^-6 g/100g water


Technical Images of ZnS Polycrystals Window
