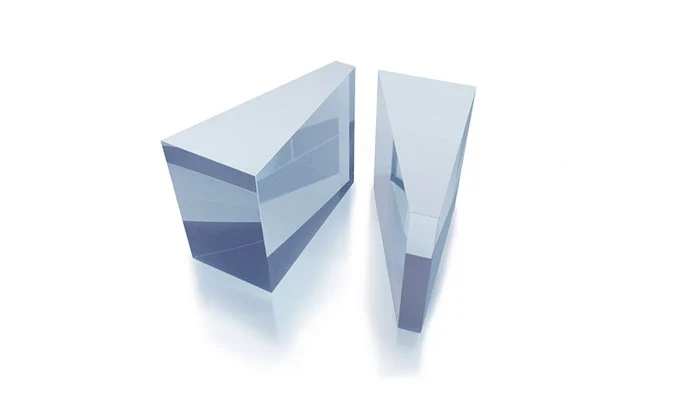

Anamorphic Prisms

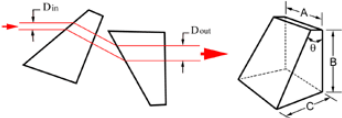

Anamorphic prisms are utilized to rectify the asymmetric and elliptical beams generated by laser diodes, resulting in nearly circular beam shapes. By utilizing an anamorphic prism, the beam size can be altered along one axis while remaining unaltered along the other axis, allowing for expansion, reduction or reshaping of the beam.


Specifications of Anamorphic Prisms


Material:

N-SF11, H-ZF13 Grade A optical Glass

Dimension Tolerance (mm):

+/-0.2 (General), +0/-0.1 (High Precision)

Theta:

q = 29°27'±30"

Flatness (per 25mm@633nm):

λ/2(General), λ/10 (High Precision)

Clear Aperture:

>80% (small size),>90%(large size)

Surface Quality:

60/40 (General), 10/5 (High Precision)

Bevel (mm):

0.1-0.5

Coating on input and output sides:

MgF2 single layer on perpendicular surface

or AR coating--Unpon Request



Note for Anamorphic Prisms




Anamorphic prism is available upon requirement.


Note: The prism is counted quantity at every piece. It shall be used as pair (two pieces).
