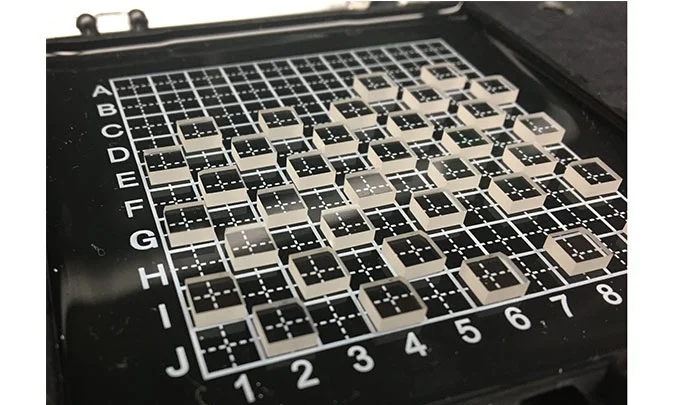

ce yap substrate
ce yap substrate

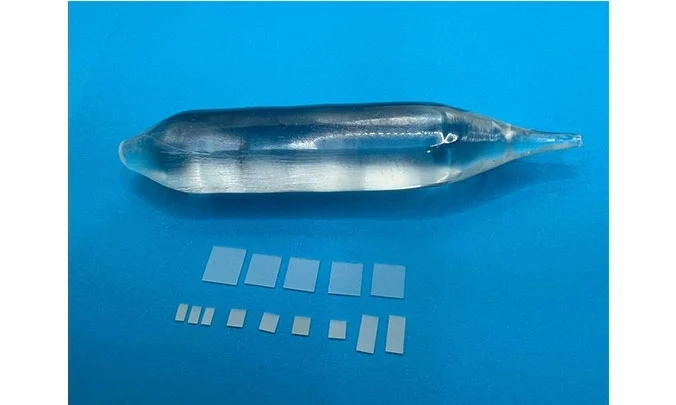

ce yap crystal substrates

Ce YAP Substrates

Ce:YAP is a fast scintillation crystal with excellent performance. It has high light output, fast decay time, good thermal stability and mechanical properties, and stable chemical properties. Ce:YAP scintillation crystals are mainly used in fast gamma-ray detection, animal PET scanning systems, electronic imaging (SEM), high-energy physics, low- and medium-energy X-ray two-dimensional imaging and other fields.


OST Photonics offers high quality Ce:YAP substrates for researchers and industries. Crystal size and thickness can be customized according to your requirements.


Application of Ce YAP Substrates


  • Gamma, X-ray counter

  • X-ray imaging screens

  • Electron imaging screens

  • Ion beam imaging

  • Scanning electron microscope(SEM)



Advantages of Ce YAP Substrates


  • High density

  • Stable physical and chemical properties

  • Fast decay time

  • No hygrscopic

  • No cleavage planes

  • High temperature resistance



Ability of Ce YAP Substrates


  • Maximum Size: ɸ50mm x 160mm

  • Dimension: 1”, 25x25mm, 10x10mm, 10x5mm, 5x5mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrate, blanks, scintillation screen and customized optics



Specification and properties of Ce YAP Substrates



Crystal System

Orthogonal

Density

5.4 g/cm3

Hardness

8.5 Mohs

Melt Point

1875 ℃

Effective Atomic Number

39

Peak Wavelength

370 nm

Refractive index at peak emission

1.95

Cleavage

No

Deliquescence

No

Decay Time

28 ns

Light Yield

25 photons/KeV

Radiation Length

2.7 cm

Dimension

1”, 25x25mm, 10x10mm, 10x5mm, 5x5mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Roughness

Ra<5Å

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Package

Class 100 clean bag, Class 1000 super clean room
