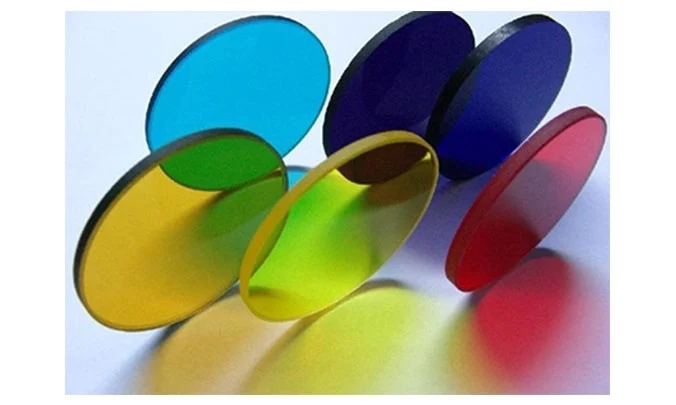

Colored Glass Filter

OST Photonics provides a comprehensive range of colored glass filters, crafted from the highest quality optical glass sourced from renowned suppliers such as Schott and Hoya. These filters span across UV, visible, and near-infrared wavelengths and are meticulously polished to meet the demands of rigorous research or OEM applications.

Colored Glass Filter Types


Cut-Off Type Colored Filter Glass

Selective Absorption Colored Optical Filter Glass

Neutral Filter Glass

Ultraviolet Glasses

Ultraviolet Glasses

Neutral Grey Colored Ultraviolet Glasses

Infrared Glasses 

Infrared Glasses 

Golden (Yellow)Glasses

Golden (Yellow)Glasses

Violet Glasses 

Violet Glasses 

Protective Glasses 

Protective Glasses 

Orange Glasses

Orange Glasses



Specifications of Colored Glass Filter


Material:

colored glass filter

Typical Diameter (Φmm)

10.0, 15.0, 20.0, 25.4, 30.0, etc.

Diameter Tolerance (mm)

±0.1 or upon request

Thickness Tolerance (mm)

±0.1 or upon request

Parallelism

<3′ or upon request

Surface Quality

80/50 or upon request

Flatness (per 25mm@633nm)

λ (General), λ/10 (High Precision)

Clear Aperture

>85%

Coating

Uncoated, Dielectric AR Coating, Dichroic Filter Coating, etc.

Angle of Incidence

+/-5 deg

Blocking

<1%

Cut on/Cut off Wavelength

+/-10 nm

Temperature Range

-50℃ to +100℃
