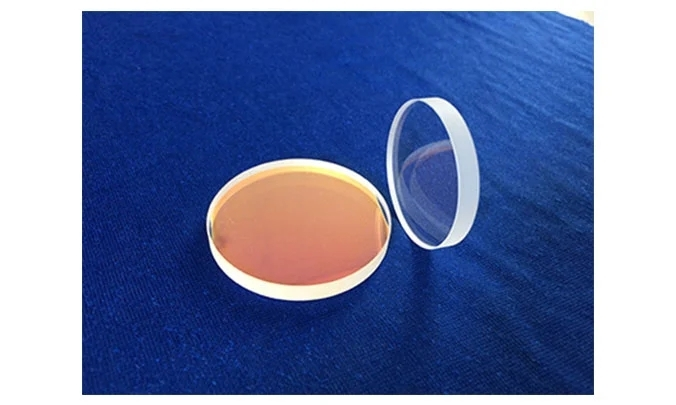

Dielectric Coating Filter

OST Photonics provides dielectric coating filters made of optical materials such as Colored Glass, BK7, Fused Silica, Sapphire and more. The range of dielectric coating filters includes bandpass filters, dichroic filters, longpass filters and shortpass filters. The transmissive wavelength range can be customized to meet specific requirements for high transmission at specified wavelengths.

Specifications of Dielectric Coating Filter


Material

Optical glass

Typical Diameter (Φmm)

10.0, 15.0, 20.0, 25.4, 30.0, etc.

Diameter Tolerance (mm)

+/-0.1 or upon request

Thickness Tolerance (mm)

+/-0.1 or upon request

Parallelism

<3′ or upon request

Surface Quality

80/50 or upon request

Coating

AR, HR, PR, HR+HT coating

Wavelength(nm) and AOI

Upon request


Note for Dielectric Coating Filter


  • Optical glass such as Colored Glass, N-BK7, H-K9L, B270 Fused Silica, Sapphire, and so on.

  • Dielectric Coating Filter of any size with the shape of quadrate, triangular, or other polygonal is available.

  • Other dimensions and thicknesses upon request.
