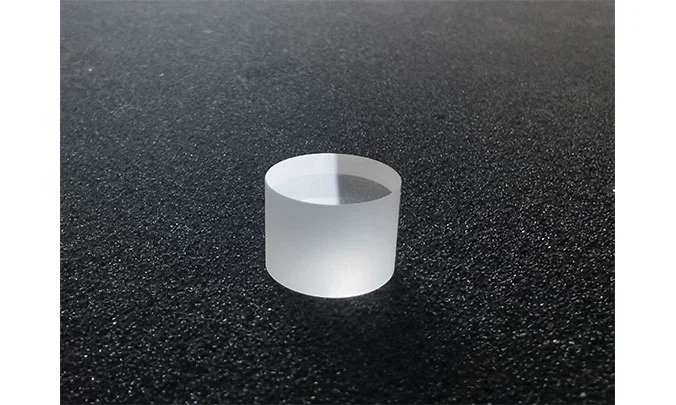

csi tl scintillator
csi tl scintillator

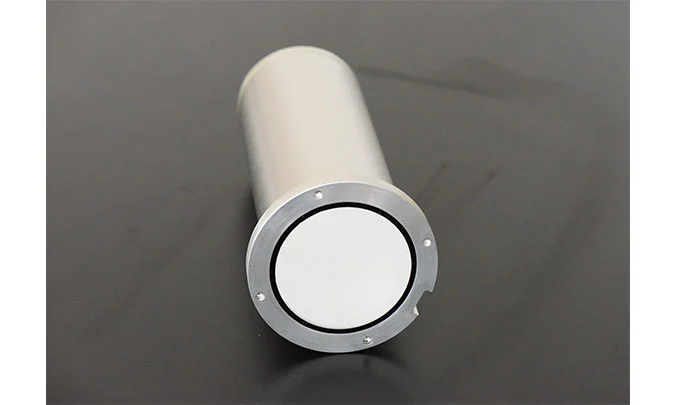

csi tl crystal

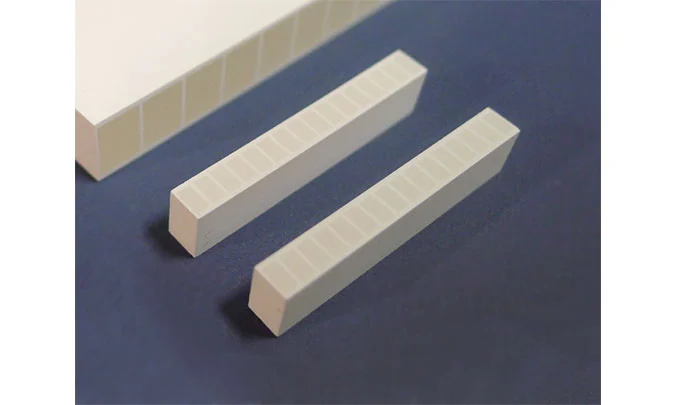

cesium iodide scintillator

CsI(Tl) Scintillators

the advantages of high density, high Gamma-ray stopping power, good energy resolution, high light output, high detection efficiency for gamma-ray and X-ray. It has no cleavage plane and good processibility, can be made into various shapes. In addition, because of its emission in the long-wavelength part of the spectrum (>500nm), it is well-suited for photodiode readout. CsI(Tl) crystal is widely used in high energy physics, nuclear physics, space physics, security inspection (luggage & container), industrial level gauge and so on.


OST Photonics ia able to supply the CsI(Tl) crystals, CsI(Tl) scintillation screen, CsI(Tl) linear or 2-D arrays upon request. In addition, we can also supply low afterglow type CsI(Tl) crystals with afterglow of 0.05~0.39%@20ms. Low afterglow type CsI(Tl) crystal not only retains the advantage of high light output of standard type CsI(Tl) crystal, but also significantly inhibits the afterglow. It effectively improves the problem of afterglow trailing in the scanning radiation imaging system and improves the imaging quality. It is very suitable for the imaging system which requires high imaging quality and fast scanning.


Applications of CsI(Tl) Scintillators (CsI:Tl Scintillators)


  • Security inspection

  • Industrial level gauge

  • High energy physics

  • Nuclear imaging


Advantages of CsI(Tl) Scintillators (CsI:Tl Scintillators)


  • High density

  • High Gamma-ray stopping power

  • Good energy resolution

  • High light output

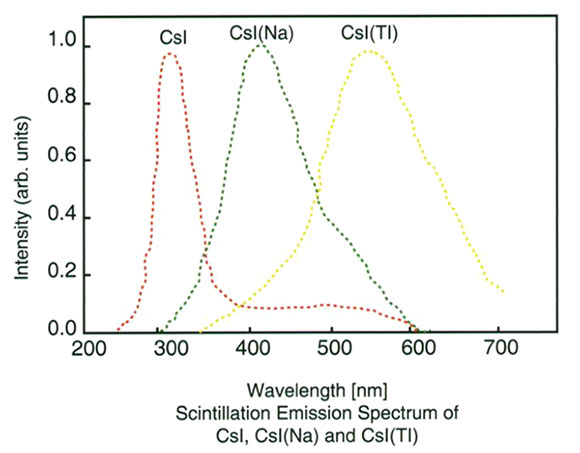

  • Emission wavelength at 550 nm

  • Compatible with photodiode readout


The Ability of OST Photonics


  • Maximum Size: ɸ120mm x 400mm

  • Available items: monolithic crystal, scintillation screen, linear or 2-D array


Different Types of CsI(Tl) Scintillators (CsI:Tl Scintillators)


Type

Relative Light Output of NaI(Tl)

Decay time

Afterglow

Standard type

45%

1000 ns

0.5~5%@6ms

Low afterglow type

40%

1000 ns

0.05~0.39%@20ms


Properties of CsI(Tl) Scintillators (CsI:Tl Scintillators)


Relative Light Output of NaI(Tl) (%)

40 low afterglow; 45 standard

Scintillation Decay Time (ns)

1000

Emission Peak Wavelength (nm)

550

Refractive Index (peak wavelength)

1.80

Density(g/cm3)

4.51

Hygroscopic

Slight

Mohs hardness

2

Afterglow

0.05~0.39%@20ms low afterglow; 0.5~5%@6ms standard

Light yield (photons/keV)

48 low afterglow; 54 standard
