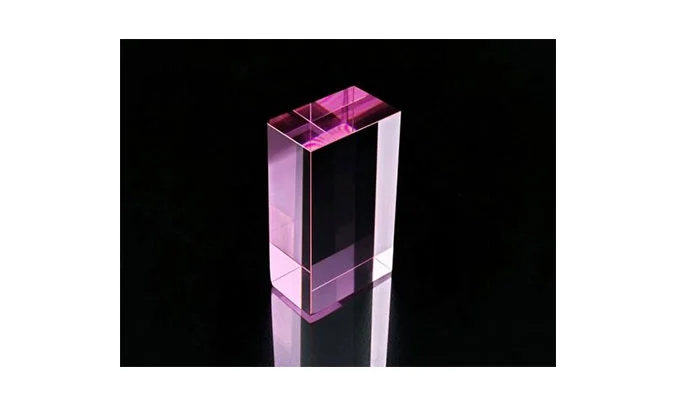

laser crystal rod supplier
laser crystal rod supplier

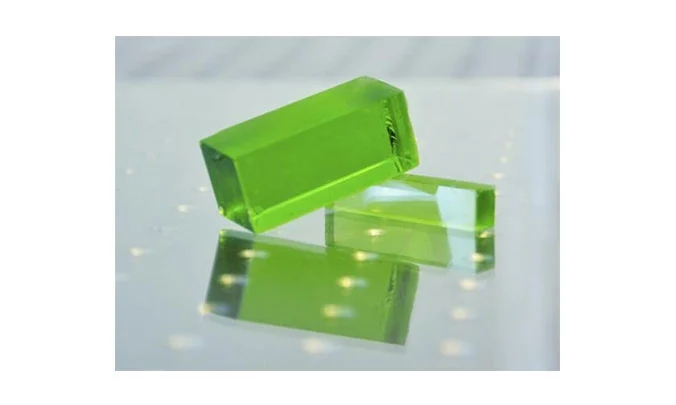

laser crystal rod manufacturer

OST Photonics Er: Glass Laser Crystals

Er3+, Yb3+ co-doped phosphate glass is a well-known and commonly used active medium for lasers emitting in the “eye-safe” spectral range of 1,5-1,6 µm.As an eye-safe wavelength laser, 1540um ,Er3+/Yb3+ co-doped phosphate glass lasers have attracted much attention for their compactness and low cost, such as laser generation and signal amplification because the wavelength of 1540nm is just at the position of the eye-safe and the fiber optic communication window. 1540nm lasers have used in ranging finder, radar, target recognition. Er3+/Yb3+ co-doped phosphate glass cooperate with passive Q-Switch crystal cospinel can get 1540nm pulse solid-state laser.

Applications of Er Glass Laser Crystals


  • Diastimeter

  • Radar

  • Object identification


Advantages of Er Glass Laser Crystals


  • Waveguide amplifier

  • Ultrashort pulse laser

  • Medical laser

  • Xenon lamp pump laser


Specifications of Er Glass Laser Crystals


Dimension Tolerances:

rods with diameter: +0.0/-0.05 mm , Length: ±0.1 mm

Surface Quality:

10/5 Scratch/Dig MIL-O-1380A

Parallelism:

< 10″

Perpendicularity:

< 5′

Clear Aperture:

> 90%

Wavefront Distortion:

λ/4 per inch @ 632.8 nm

Surface Flatness:

< λ/8 @ 632.8 nm

Chamfer:

< 0.1 mm @ 45o

Barrel Finish

50-80 micro-inch (RMS),

Size

Upon customer request

Coating

AR/HR coating upon customer’s request

Damage Threshold

750MW/CM2 at 1064nm, TEM00, 10ns, 10Hz

Quality Warranty Period

One year under proper use


Optical and Laser Properties of Er:Yb: Glass


Cross-section for stimulated emission

0.8x10^-20 cm2

Fluorescent lifetime

7.7-8.0 ms

Center lasing wavelength

1535 nm

Refractive index

1.524@1535 nm

Refractive index

1.532@589.3 nm

Abbe value

66

dn/dT (20~100℃)

-1.72x10^-6 /℃

Transformation temp.

556 ℃

Softening temp.

605 ℃

Coeff. of linear thermal expansion (20~100℃)

87x10^-7 /K

Coeff. of linear thermal expansion (100~300℃)

95x10^-7 /K

Thermal Coeff. of optical path length (20~100℃)

2.9x10^-6 /K

Thermal conductivity (25℃)

0.7 W/mK

Density

3.06 g/cm3

Chemical durability
(weight loss rate at 100℃ distilled water)

52 μg/hr.cm2
