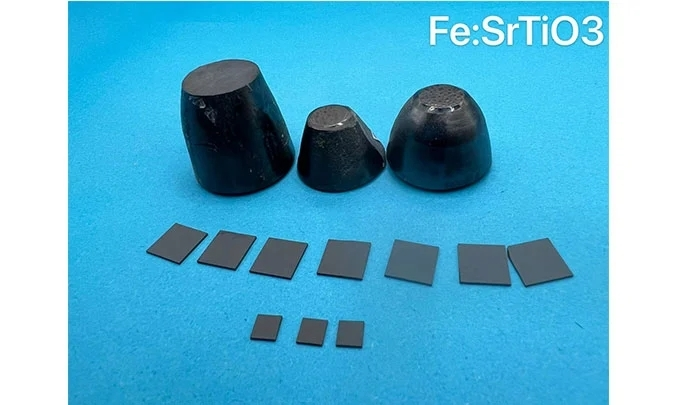

OST Photonics Fe SrTiO3 Substrates

Iron-doped strontium titanate and strontium titanate single crystal have a similar structure, it is a good substrate material for high temperature superconducting films and various oxide films. Fe:SrTiO3 is also used in special optical windows and high quality sputtering targets.


OST Photonics offers high quality Fe:SrTiO3 substrates for researchers and industries. At present we can provide Fe:SrTiO3 substrates with iron doping concentration of 0.05wt% and 0.04wt%. Crystal orientation, size and thickness can be customized according to your requirements.


Application of Fe SrTiO3 Substrates


  • Substrate material for ferroelectric thin film

  • Semiconductor and optical applications

  • Sputtering targets



Advantages of Fe SrTiO3 Substrates


  • Excellent ferroelectric properties

  • Excellent physical and mechanical properties



Ability of Fe SrTiO3 Substrates


  • Orientation:<100>,<110>,<111>, etc.

  • Dimension: 10x3mm, 10x5mm, 10x10mm, 15x15mm, 20x15mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrate, blanks and customized optics



Specification and Properties of Fe SrTiO3 Substrates



Crystal System

Cubic

Growth Method

Flame

Crystal Lattice Constant

a=3.905 Å

Doping Concentration

0.05wt%, 0.04wt%

Melt Point

2080 ℃

Density

5.122 g/cm3

Hardness

6-6.5 Mohs

Dielectric Constant

ε=5.20

Chemical Stability

Insoluble in water

Thermal Expansion

10.4×10^-6/k

Tangent Loss

~5×10^-4 (300k)  ~3×10^-4 (77k)

Orientation

<100>,<110>,<111>, etc.

Orientation Tolerance

±0.5° or better

Dimension

10x3mm, 10x5mm, 10x10mm, 15x15mm, 20x15mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Package

Class 100 clean bag, Class 1000 super clean room
