GAGG(Ce) Scintillators

GAGG(Ce) gadolinium gallium aluminum garnet is a new detection material for high-end CT and security equipment. It has the advantages of high density, high light output, short decay time, and low radioactive background. Besides, it has stable chemical composition, no cleavability and no hygroscopy, and is easy to process and assemble, which can be applied in the fields of radiation detection and high energy physics.


OST Photonics can supply GAGG(Ce) crystals, GAGG(Ce) scintillation screens and LYSO(Ce) arrays upon your requests. We can offer a variety of design options and different types of GAGG(Ce) crystal materials to meet the needs of customers for their applications.


Application of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)


  • Gamma-ray detection

  • X-ray medical imaging

  • High energy physics

  • Positron Emission Tomography-Computed Tomography(PET-CT)

  • Single photon emission computed tomography(SPECT)


Advantages of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)


  • High light output

  • High energy resolution

  • Fast decay time

  • No background

  • No hygroscopy


The Ability of OST Photonics


  • Maximum Size: ɸ60mm x 200mm

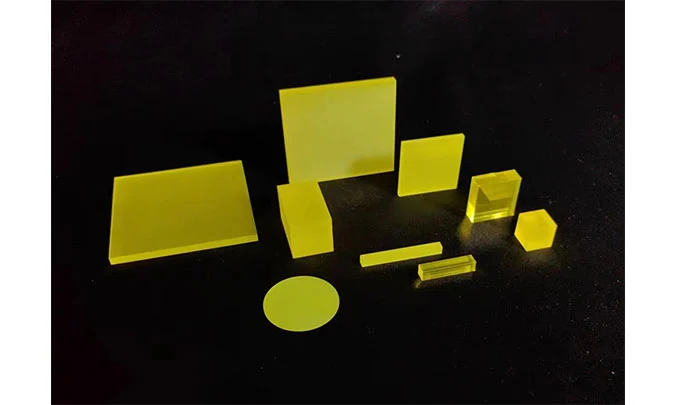

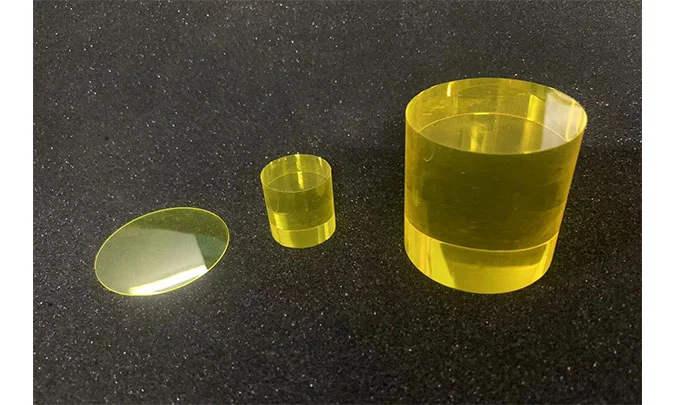

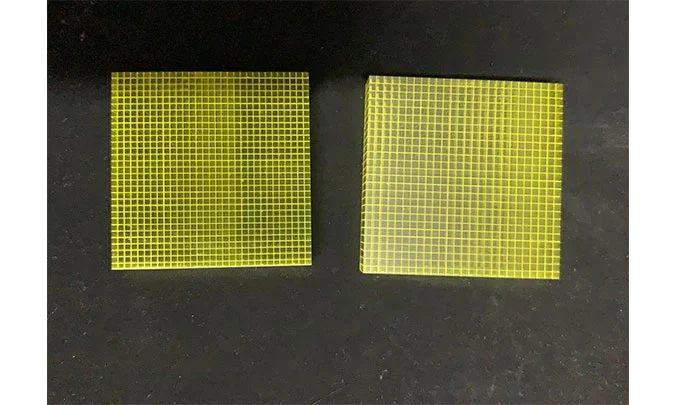

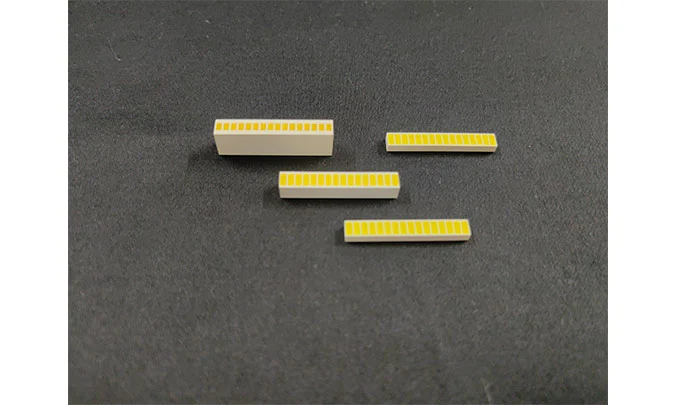

  • Available items: monolithic crystal, scintillation screen, pixellated array


Different Types of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)


Type

Light yield

Decay time

Afterglow

High light output type

54000 photons/keV

<150 ns

≤0.10%@20ms

Low afterglow type

45000 photons/keV

<70 ns

≤0.02%@20ms

Fast decay time type

30000 photons/keV

<50 ns

≤0.10%@20ms

Balanced type

42000 photons/keV

<90 ns

≤0.10%@20ms


Scintillation Screen Design Options of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)


  • Freestanding ultra-thin scintillation screen.

  • Ultra-thin scintillation screens can be coupled to a substrate with optical adhesives in order to achieve better optical readout.

  • Scintillation screens can be inserted into frames(Aluminum or Stainless steel) for easier manipulation.

  • We can provide customized marking such as a grid, cross, or scale on the surface of the screen for easier beam visualization.

  • We can provide various coating on the surface of the screen upon request, such as reflection coatings(Al, Au, Ag, etc.), AR coating, diffusion painting(TiO2, Al2O3), and conductive coatings(Al, ITO, C).


Properties of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)


Product Type

High light output type

Low afterglow type

Fast decay time type

Balanced type

Scintillation decay time (ns)

<150

<70

<50

<90

Emission peak wavelength (nm)

520

520

520

520

Refractive index (peak wavelength)

1.9

1.9

1.9

1.9

Density (g/cm3)

6.6

6.6

6.6

6.6

Light yield (photoelectron /keV)

54

45

30

42

Energy resolution ( 137Cs) (5x5x5 mm)

6%

6%

7%

6%

Radiation hardness (rad)

10^5

10^5

10^5

10^5

Crystal structure

Cube

Cube

Cube

Cube

Cleavage plane

No

No

No

No

Hygroscopic

No

No

No

No

Mohs hardness

8

8

8

8

Afterglow

≤0.10%@20ms

≤0.02%@20ms

≤0.10%@20ms

≤0.10%@20ms
