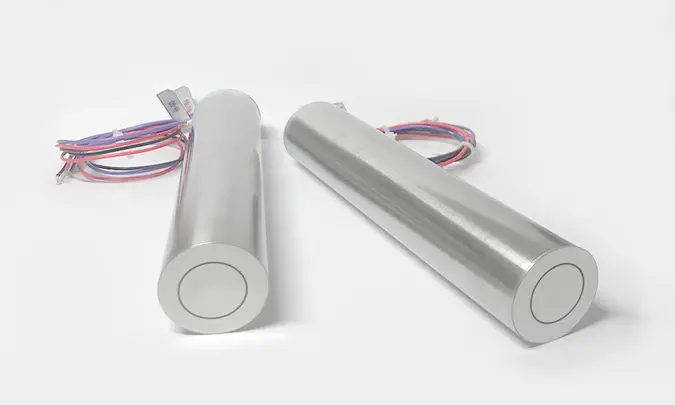

what is a scintillator
what is a scintillator

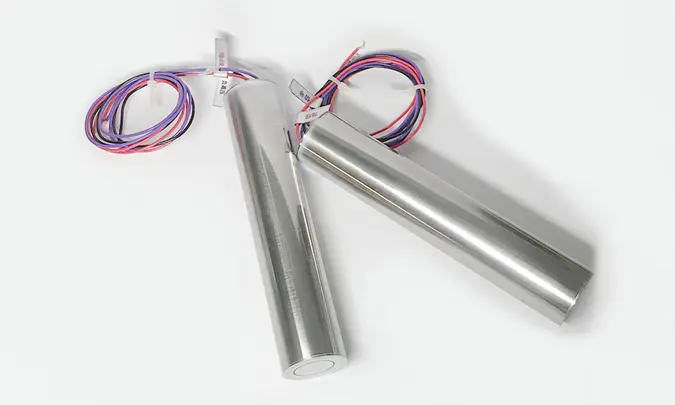

what does a scintillator do

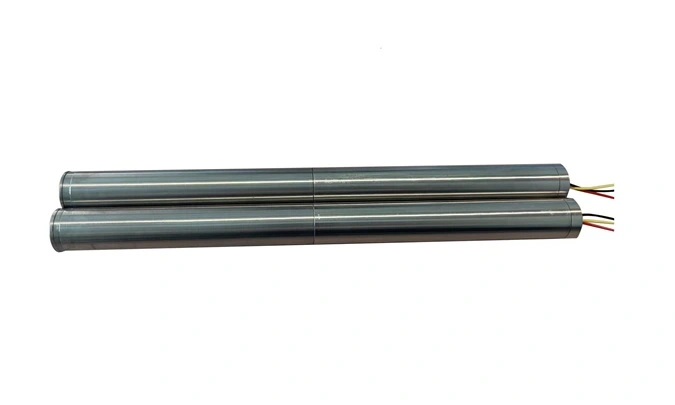

high temperature naitl detectors

High Temperature Scintillation Detector

High temperature scintillation detector is mainly used in petroleum logging and geological exploration. Due to its harsh operating environment, the detector and its components need to withstand up to 175℃ or higher temperature and a certain magnitude of vibration and shock. In particular, while drilling detector products need to withstand up to 30g rms random vibration and 1000g mechanical impact.

Application of High-Temperature Scintillation Detector


  • Density logging

  • Compensated neutron logging

  • Stratigraphic element survey

  • Stratigraphic natural gamma counting

  • Natural gamma counting of coal seams


Advantages of High-Temperature Scintillation Detector


  • High-temperature resistance

  • Good vibration and shock resistance

  • Stable performance

  • Compact package


High Temperature NaI(Tl) Scintillation Detector


Application

Probe Diameter (mm)

Vibration Resistance

Operating Temperature (℃)

Components

Model

Counting while drilling

19.0

15g rms

-30~175

high temperature anti-vibration NaI(Tl) crystal, high temperature PMT, voltage divider, high temperature HV power supply and signal processing circuit (TTL output)

NaICWD-01

24.0

high temperature vibration-resistant NaI(Tl) crystal, high temperature PMT and voltage divider

NaICWD-02

26.0

high temperature anti-vibration NaI(Tl) crystal, high temperature PMT, voltage divider, high temperature HV power supply and signal processing circuit (TTL output)

NaICWD-03

26.0

20g rms

NaICWD-04

28.0

30g rms

high temperature vibration-resistant NaI(Tl) crystal, high temperature PMT and voltage divider

NaICWD-05

28.0

NaICWD-06

34.5

20g rms

high temperature anti-vibration NaI(Tl) crystal, high temperature PMT, voltage divider, high temperature HV power supply and signal processing circuit (TTL output)

NaICWD-07

36.0

NaICWD-08

Counting measurement

35.0

5g rms

high temperature vibration-resistant NaI(Tl) crystal, high temperature PMT and voltage divider

NaIC-01

40.0

NaIC-02

47.0

NaIC-03

47.0

high temperature anti-vibration NaI(Tl) crystal, high temperature PMT, voltage divider, high temperature HV power supply and signal processing circuit (TTL output)

NaIC-04

47.0

20g rms

high temperature vibration-resistant NaI(Tl) crystal, high temperature PMT and voltage divider

NaIC-05

62.5

5g rms

NaIC-06

Energy spectrum measurement while drilling

25.0

30g rms

high temperature vibration-resistant NaI(Tl) crystal, high temperature PMT and voltage divider

NaISWD-01

25.0

NaISWD-02

26.5

20g rms

NaISWD-03

26.5

NaISWD-04

Energy spectrum measurement

31.5

5g rms

NaIS-01

41.5

NaIS-02


High Temperature LaBr3(Ce) Scintillation Detector


Application

Probe Diameter (mm)

Vibration Resistance

Operating Temperature (℃)

Components

Model

Energy spectrum measurement while drilling

37.5

20g rms

25~150

high temperature vibration-resistant LaBr3(Ce) crystal, high temperature PMT and voltage divider

LBSWD-01

Energy spectrum measurement

31.0

5g rms

25~150

LBS-01

62.0

25~175

LBS-02


Other Scintillation Detectors


Application

Probe Diameter (mm)

Vibration Resistance

Operating Temperature (℃)

Components

Model

Counting while drilling

25.0

10g rms

-30~80

high temperature anti-vibration NaI(Tl) crystal, high temperature PMT, voltage divider, high temperature HV power supply and signal processing circuit (TTL output)

NaICWD-09

Energy spectrum measurement

76.0

3g rms

25~65

high temperature vibration-resistant BGO crystal, high temperature PMT, voltage divider and pre-amplifier

BGOS-01
