Scintillation Detector Electronics

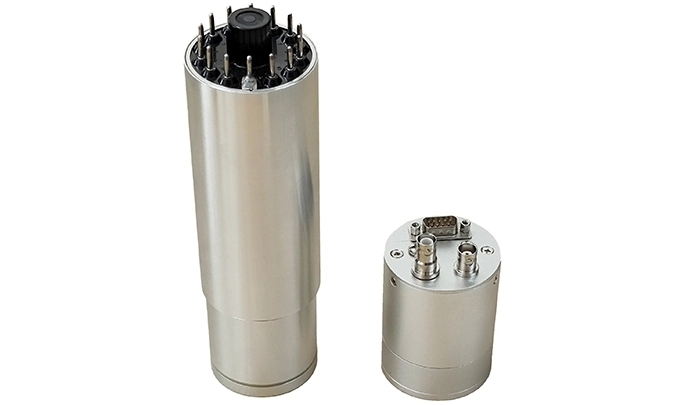

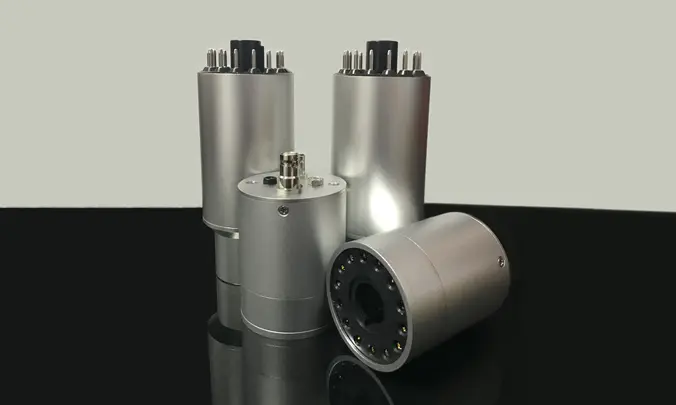

OST Photonics is able to supply the plug-on detector electronics for your detectors (scintillator+PMT). The plug-on detector electronics can contain voltage divider, pre-amplifier, high voltage power supply and other functional modules, they are suitable for various types of photomultiplier tubes and their scintillation detector assemblies, which can can realize the measurement of various radioactive rays. The module has a wide range of DC power input (5V-12V), with appropriate detectors, can be directly connected to various multi-channel analyzer (MCA) or counter equipment.

Applications of Scintillation Detector Electronics


  • Gamma-ray spectroscopy

  • Radioimmunoassay

  • Aerial survey

  • Whole-body counting

  • Security portal monitoring

  • Nuclear medicine

  • High energy physics


Advantages of Scintillation Detector Electronics


  • Compatible with various scintillation detector assemblies

  • Convenient to use (mount directly to a 14-pin base of a PMT or radiation detector)

  • High-cost performance

  • Compact package

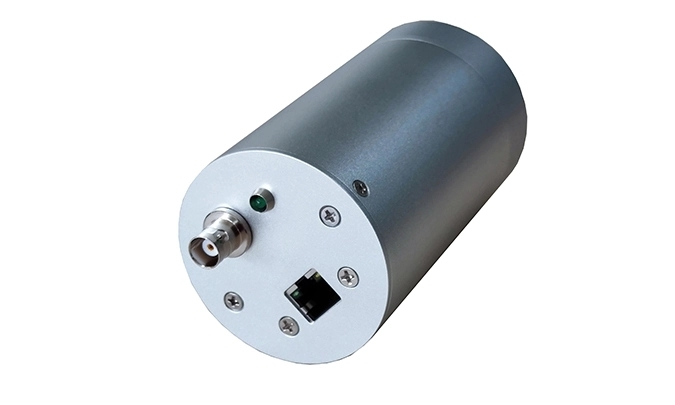

External Components of Scintillation Detector Electronics


  • Anodized Aluminum housing

  • High voltage potentiometer (Models without built-in high voltage modules do not have this component)

  • High voltage monitoring point (Models without built-in high voltage modules do not have this component)

  • SHV type high voltage connector (Only for models without built-in HV module)

  • BNC type signal connector

  • 4-pin DC power supply connector (Models without pre-amplifier do not have this component)

  • Each connector is equipped with one 1.5 m cable


Technical Parameters of Scintillation Detector Electronics


  • Pulse output: refer to the following standard plug-on electronics table and model definition

  • Pulse amplitude range: 0~5V

  • HV range: 30V-1250V

  • Low voltage input: 5V-12V

  • Operating temperature: 0~40℃

  • Relative humidity: ≤90% (25℃)


Standard Plug-on Electronics


Model

Voltage Divider Mode

Pre-amplifier

High Voltage Type

Compatible PMTs

Anode Output Mode

(No pre-amplifier)

Other Functional Modules

OST-P-N-E-3-A-0

Positive HV

No pre-amplifier

No built-in HV module

CR105-05

AC coupling output

None

OST-P-C-E-3-N-0

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

No built-in HV module

CR105-05

N/A

None

OST-P-C-P-3-N-0

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

Positive HV

CR105-05

N/A

None

OST-P-N-E-1-A-0

Positive HV

No pre-amplifier

No built-in HV module

R6231、CR173

AC coupling output

None

OST-P-C-E-1-N-0

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

No built-in HV module

R6231、CR173

N/A

None

OST-P-C-P-1-N-0

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

Positive HV

R6231、CR173

N/A

None

OST-P-N-E-2-A-0

Positive HV

No pre-amplifier

No built-in HV module

R6233、CR160

AC coupling output

None

OST-P-C-E-2-N-0

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

No built-in HV module

R6233、CR160

N/A

None

OST-P-C-P-2-N-0

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

Positive HV

R6233、CR160

N/A

None

OST-P-C-P-3-N-1

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

Positive HV

CR105-05

N/A

Built-in shaping amplifier

OST-P-C-P-7-N-1

Positive HV

Charge-sensitive pre-amplifier (positive pulse)

Positive HV

CR119

N/A

Built-in shaping amplifier
