nd doped strontium titanate
nd doped strontium titanate

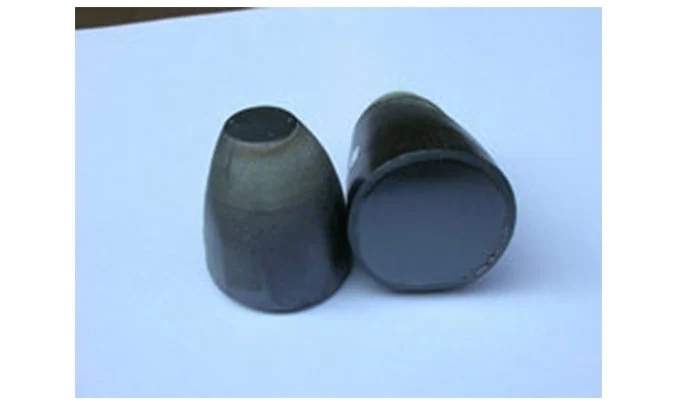

Nd SrTiO3 Substrates

Neodymium-doped strontium titanate has a similar structure to pure strontium titanate single crystal. At present, we can provide Nd:SrTiO3 single crystal substrates with Neodymium doping concentration of: 0.5%.


OST Photonics offers high quality Nd:SrTiO3 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of Nd SrTiO3 Substrates


  • Substrate material for ferroelectric thin film

  • Semiconductor and optical applications


Advantages of Nd SrTiO3 Substrates


  • Excellent ferroelectric properties

  • Excellent physical and mechanical properties


Ability of Nd SrTiO3 Substrates


  • Orientation:<100>,<110>,<111>, etc.

  • Dimension: 10x5mm, 10x10mm, 15x15mm, 20x15mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrates, blanks and customized optics


Specification and Properties of Nd SrTiO3 Substrates


Crystal Structure

Cubic

Growth Method

Verneuil

Lattice Constant

a=3.905 Å

Nd Concentration (Nd%)

0.5%

Melting Point

2080℃

Density

5.122 g/cm3

Hardness

6-6.5 Mohs

Dielectric Constant

ε=5.20

Chemical Stability

Insoluble in water

Thermal Expansion Coefficient

10.4×10^-6/K

Tangent Loss

~5×10^-4 (300K) ~3×10^-4 (77K)

Orientation

<100>,<110>,<111>, etc.

Orientation Tolerance

±0.5° or better

Dimension

10x5mm, 10x10mm, 15x15mm, 20x15mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Package

Class 100 clean bag, Class 1000 super clean room
