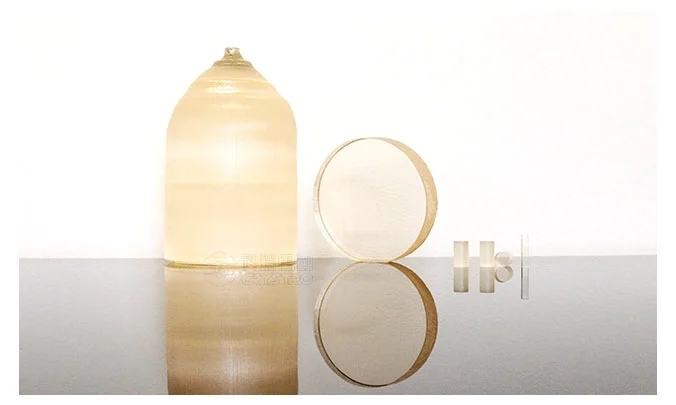

TGG Substrate

Terbium gallium garnet (TGG) is a kind of high performance magneto-optical crystal in the visible and near infrared spectrum, which is widely used in laser technology, optical communication and optical information processing technology. It has high feld constant, low optical absorption coefficient, high laser damage threshold and good optical properties. These excellent properties make TGG crystal an ideal material for magneto-optical isolator.


OST Photonics offers high quality TGG substrates for researchers and industries. Crystal size and thickness can be customized according to your requirements.


Application of TGG Substrate


  • Faraday rotator

  • Optical isolator

  • Optical information processing technology


Advantages of TGG Substrate


  • Large Verdet Constant

  • Low optical loss

  • High thermal conductivity

  • High laser damage threshold


Ability of TGG Substrate


  • Orientation:<111>, etc.

  • Dimension: 1”, 2”, 3”, 4”, 5x5mm, 10x10mm, 20x20mm, etc.

  • Thickness: 0.5mm, 1.0mm, 2mm, 5mm, 10mm, etc.

  • Available items: wafers, substrates, blanks and customized optics


Specification and Properties of TGG Substrate


Chemical Formula

Tb3Ga5O12

Growth Method

Czochralski

Crystal Lattice Constant

a=12.355 Å

Melting Point

1725 ℃

Density

7.13 g/cm3

Hardness

8 Mohs

Refractive Index

1.954 @ 1064nm

Orientation

<111>, etc.

Orientation Tolerance

±0.5° or better

Wavefront Distortion

<λ/8 @ 633 nm

Extinction Ratio

>30dB

Dimensions

1”, 2”, 3”, 4”, 5x5mm, 10x10mm, 20x20mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, 2mm, 5mm, 10mm, etc.

Thickness Tolerance

±0.05 mm or better

Chamfer

0.1mm@45º

Flatness

<λ/10 @ 633 nm

Parallelism

<1 minute of arc

Perpendicularity

<1 degree

Surface Quality

S/D 20/10

Package

Class 100 clean bag, Class 1000 super clean room
