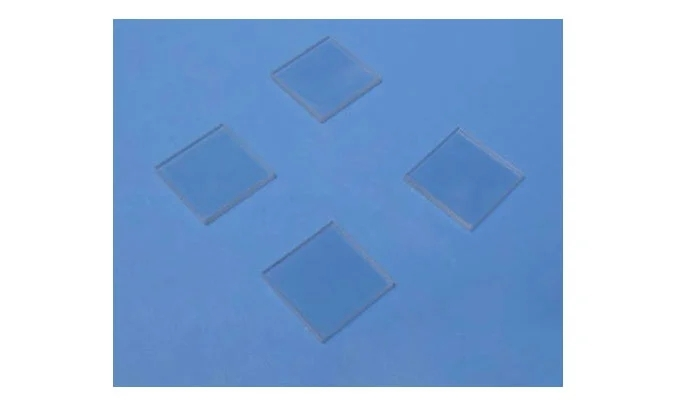

kcl crystal
kcl crystal

KCl Substrates

Crystals such as sodium chloride (NaCl), potassium bromide (KBr) and potassium chloride (KCl) are uniform, bright and high transmittance within 0.250-20 μm when thickness less than 10mm, and no impurity absorption. These single crystals are ideal materials for making optical elements for prisms, lenses, filters, and various windows in infrared devices and optical instruments.


OST Photonics offers high quality KCl substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of KCl Substrates


  • Infrared devices

  • optical instruments


Advantages of KCl Substrates


  • Uniform, bright and high transmittance within 0.250-20 μm when thickness less than 10 mm

  • No impurity absorption


Ability of KCl Substrates


  • Orientation:<100>,<110>,<111>, etc.

  • Dimension: 1”, 2”, 10x10mm, 20x20mm, etc.

  • Thickness: 0.5mm, 1.0mm, 2mm, 5mm, etc.

  • Available items: windows, substrates, blanks and customized optics


Specification and Properties of KCl Substrates



Crystal Structure

Cubic

Growth method

Czochralski

Melting point

770 ℃

Lattice constant

a=6.291 Å

Density

1.98 g/cm3

Transmission Band

0.2-27.50 um

Refractive Index

1.49

Hygroscopy

Water-soluble crystals susceptible to moisture and cannot be chemically polished

Orientation

<100>,<110>,<111>, etc.

Orientation tolerance

±0.5-2°

Dimension

1”, 2”, 10x10mm, 20x20mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, 2mm, 5mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Surface Quality

S/D 80/50 or better

Roughness

≤30 nm

Package

Class 100 clean bag, Class 1000 super clean room
