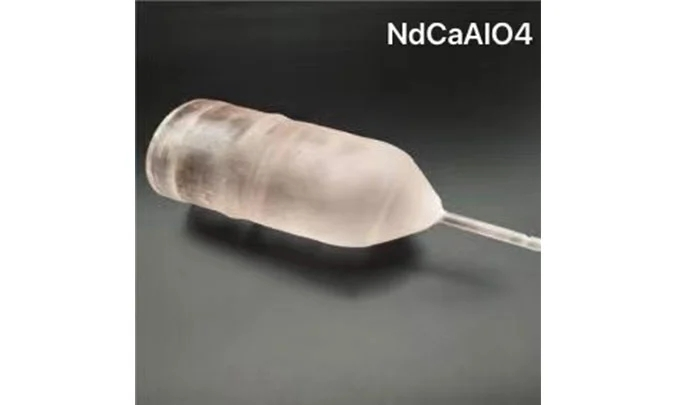

NdCaAlO4 Substrates

NdCaAlO4 is new oxide crystal for superconductor and Ferro-electronic film.


OST Photonics offers high quality NdCaAlO4 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of NdCaAlO4 Substrates


  • Substrate material for superconductor and Ferro-electronic film


Advantages of NdCaAlO4 Substrates


  • Excellent ferroelectric properties

  • Excellent physical and mechanical properties


Ability of NdCaAlO4 Substrates


  • Orientation:<001>,<100>, etc.

  • Dimension: 5x5mm, 10x5mm, 10x10mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrates, blanks and customized optics


Specification and Properties of NdCaAlO4 Substrates


Crystal Structure

Tetragonal

Growth Method

Czochralski

Lattice Constant

a=3.685 Å c=12.12 Å

Melting Point

1850 ℃

Density

5.56 g/cm3

Thermal Expansion Coefficient

12.0×10^-6/K

Cleavage Plane

<100>

Optical Transmission

>90% (200~1000 nm)

Dielectric Constants

ε= 19.5

Lattice Mismatch to YBCO

5.5%

Orientation

<001>,<100>, etc.

Orientation Tolerance

±0.5° or better

Dimension

5x5mm, 10x5mm, 10x10mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Surface Roughness

Ra≤5Å (5µmx5µm)

Package

Class 100 clean bag, Class 1000 super clean room
