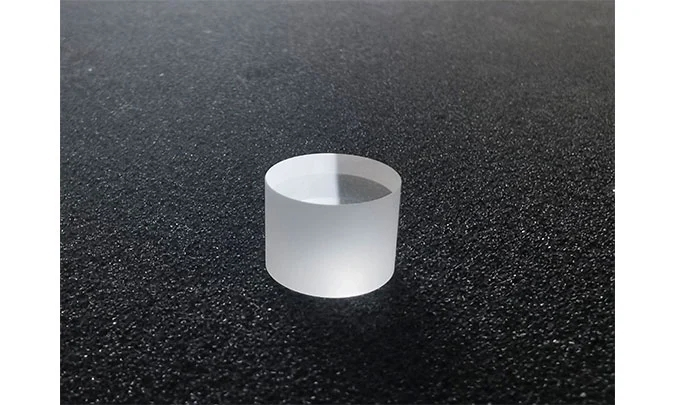

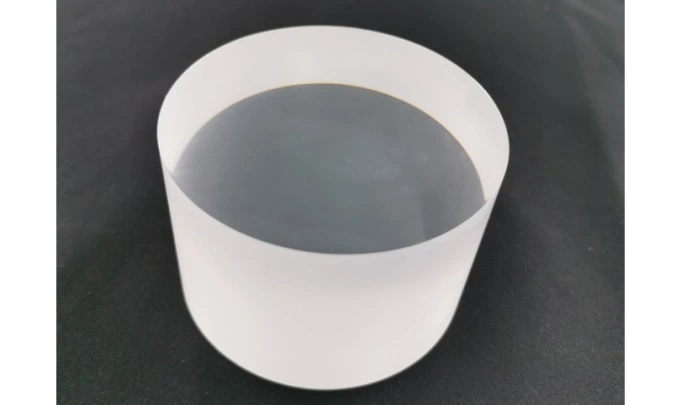

Pure CsI Scintillators

The fast component of pure CsI cesium iodide scintillator has a fast decay time of 16ns and a peak emission wavelength of 315nm. It can be used in situations requiring fast time response, such as the electromagnetic calorimeter in the electron-positron collider. In addition, it also has strong anti-radiation performance.


OST Photonics ia able to supply customized pure CsI crystals for the customer in research institutes and universities.


Applications of Pure CsI Scintillators


  • Electron-positron collider

  • High energy physics


Advantages of Pure CsI Scintillators


  • Fast decay time

  • High density

  • Strong radiation resistance

  • Good mechanically characteristics


The Ability of OST Photonics


  • Maximum Size: ɸ90mm x 300mm

  • Available items: monolithic crystal


Properties of Pure CsI Inorganic Scintillators


Relative Light Output of NaI(Tl) (%)

4~6%

Scintillation Decay Time (ns)

16

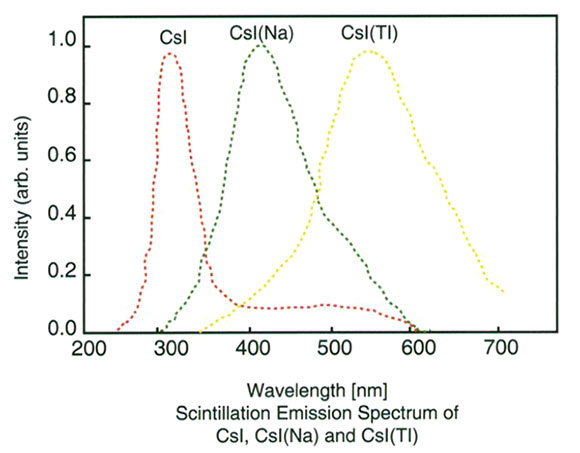

Emission Peak Wavelength (nm)

315

Refractive Index (peak wavelength)

1.95

Density(g/cm3)

4.51

Hygroscopic

Slight

Mohs hardness

2

Afterglow

--

Light yield (photons/keV)

2
