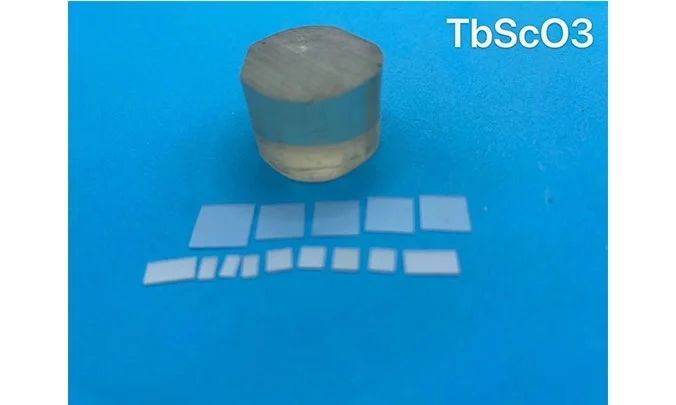

TbScO3 Substrates

Terbium scandiate (TbScO3) single crystal has a good lattice match with perovskite superconductor and is an excellent ferroelectric thin film substrate material.


OST Photonics offers high quality TbScO3 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of TbScO3 Substrates


  • Substrate material for ferroelectric thin film


Advantages of TbScO3 Substrates


  • Excellent physical and mechanical properties

  • Good lattice match with perovskite superconductor


Ability of TbScO3 Substrates


  • Orientation:<110>,<001>, etc.

  • Dimension: 5x5mm, 10x5mm, 10x10mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrates, blanks and customized optics


Specification and Properties of TbScO3 Substrates



Crystal System

Orthorombic

Growth Method

Czochralski

Crystal Lattice Constant

a=12.355 Å, b=5.7233 Å, c=709147 Å

Purity

99.95%

Density

7.13 g/cm3

Thermal Expansion Coefficient

9.4×10^-6 /℃

Orientation

<110>,<001>, etc.

Orientation Tolerance

±0.5° or better

Dimension

5x5mm, 10x5mm, 10x10mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Surface Roughness

Ra<5Å (5x5μm)

Package

Class 100 clean bag, Class 1000 super clean room
