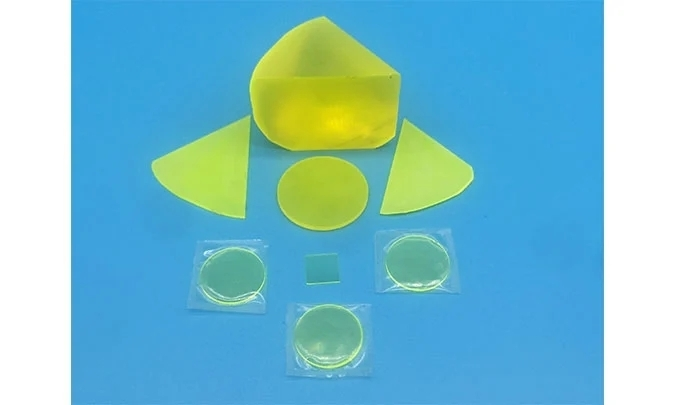

yag ce scintillator
yag ce scintillator

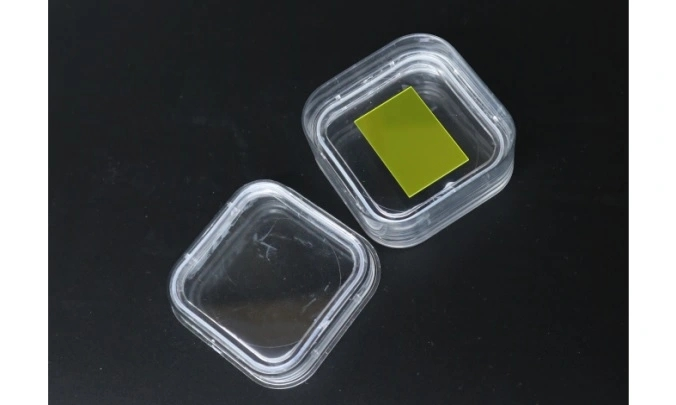

yag scintillator

OST Photonics YAG(Ce) Scintillators

YAG(Ce) cerium doped yttrium aluminum garnet crystal shows stable physical and chemical properties, high thermal conductivity, and resistance to harsh operating environments, which which makes it requisite for manufacturing ultra-thin scintillation screens of 0.01mm or thinner.  It exhibits excellent scintillating characteristics, such as high scintillating efficiency, fast decay time(75ns) and wide light pulse, and its luminous peak (550nm) can be well matched with the sensitive wavelength of the photodiode.  Because of the excellent scintillation performance of Ce:YAG crystal, it is widely used in CT, scanning electron microscope and other equipment.


OST Photonics can supply YAG(Ce) crystals and YAG(Ce) scintillation screens upon request. We can offer a variety of design options to meet the needs of our customers. In addition, we can also offer Ce:YAG transparent ceramics with a maximum diameter of 8 inches and a maximum doping concentrations of 20%, if you are interested in our Ce:YAG transparent ceramics, please feel free to contact us.


Applications of YAG(Ce) Scintillators (Ce:YAG Scintillators)


  • Beta, X-ray counter

  • X-ray imaging screens

  • Electron imaging screens

  • Ion beam imaging

  • Scanning electron microscope(SEM)


Advantages of YAG(Ce) Scintillators (Ce:YAG Scintillators)


  • High scintillating efficiency

  • Fast decay time

  • Stable physical and chemical properties

  • High thermal conductivity

  • The wavelength of peak emission well matched with the sensitive wavelength of the photodiode


The Ability of OST Photonics


  • Maximum Size: ɸ80mm x 200mm

  • Available items: monolithic crystal, scintillation screen, transparent ceramics


Scintillation Screen Design Options of YAG(Ce) Scintillators (Ce:YAG Scintillators)


  • Freestanding ultra-thin scintillation screen.

  • Ultra-thin scintillation screens can be coupled to a substrate with optical adhesives in order to achieve better optical readout.

  • Scintillation screens can be inserted into frames(Aluminum, Stainless steel) for easier manipulation.

  • We can provide customized markings such as a grid, cross, or scale on the surface of the screen for easier beam visualization.

  • We can provide various coating on the surface of the screen upon request, such as reflection coatings(Al, Au, Ag, etc.), AR coating, diffusion painting(TiO2, Al2O3), and conductive coatings(Al, ITO, C).


Properties of YAG(Ce) Scintillators (Ce:YAG Scintillators)


Density (g/cm3)

4.55

Hardness (Mho)

8.5

Hygroscopic

No

The wavelength of emission max. [nm]

550

Refractive index @ emission max

1.82

Decay time [ns]

70

Relative light output of NaI(Tl) (%)

40

Light yield (photons/keV)

30

Density [g/cm3]

4.55

Hardness (Mho)

8.5

Hygroscopic

No

Thickness to stop 50% of 662 keV photons (cm)

2
