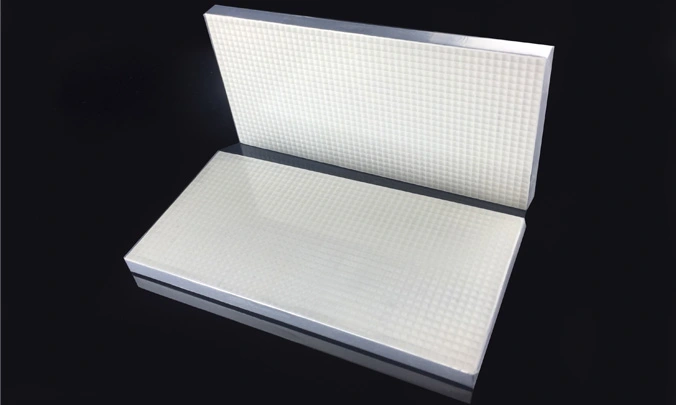

ysoce arrays 1
ysoce arrays 1

YSO(Ce) Array

YSO(Ce) cerium doped yttrinm silicate belongs to monoclinic rare earth orthosilicate crystal, which has a peak emission wavelength of 420nm. YSO(Ce) scintillators have a similar decay time to LYSO(Ce) (50-70ns), but it has no background (Lutecium), which is critical for precise detection fields. YSO(Ce) crystal has a high density of 4.45g/cm^3, and high radiation resistance, it has good mechanical properties and is non-deliquescent. YSO(Ce) scintillator crystals are used in high energy, nuclear and space physics, nuclear medicine, Positron emission tomography (PET), and industrial Non-Destructive Test (NDT) applications.



OST Photonics can manufacture YSO(Ce) arrays according to our customers' different design options in terms of pixel size, the number of pixels, reflector materials and crystal surface finishes. We offer a variety of design options and reflector materials to optimize the array performance. Our manufacturing process can ensure high light output as well as excellent pixel to pixel uniformity with minimal crosstalk. Furthermore, offset YSO(Ce) arrays (multilayer YSO(Ce) arrays) are also available upon requests.

Application of YSO(Ce) Array


  • Positron emission tomography (PET)

  • Nuclear medicine

  • Industrial NDT

  • High energy, nuclear and space physics


Advantages of YSO(Ce) Array


  • Fast decay time

  • No background radiation

  • Mechanically robust characteristics, no cleavage planes and are non-hygroscopic

  • Good rad-hard properties

  • High density


Specifications of YSO(Ce) Array


Number of pixels: 4x4; 8x8; 16x16; 20x20; 25x50 etc. (customized upon request)

Minimal pixel size: 0.2 mm x 0.2 mm



Reflector Types and Thicknesses of YSO(Ce) Array


Material

Thickness of reflector material + adhesive

BaSO4

≥0.1 mm

ESR

0.08 mm

E60

0.075 mm

TiO2

≥0.1 mm



Properties of YSO(Ce) Crystal


Density (g/cm3)

4.45

Decay Constant (ns)

50-70

Wavelength of Emission Max (nm)

420

Relative Light Output of NaI(Tl)

70%

Melting Point (K)

2000

Refractive Index of Emission Max

1.8

Hygroscopicity

none

Cleavage

none


Quality control for YSO(Ce) Array


1. Dimension testing

2. Relative light output testing

3. Pixel light output uniformity: ≤10%;≤20%;≤30% or on request

4. Energy resolution testing

5. Scatter map
