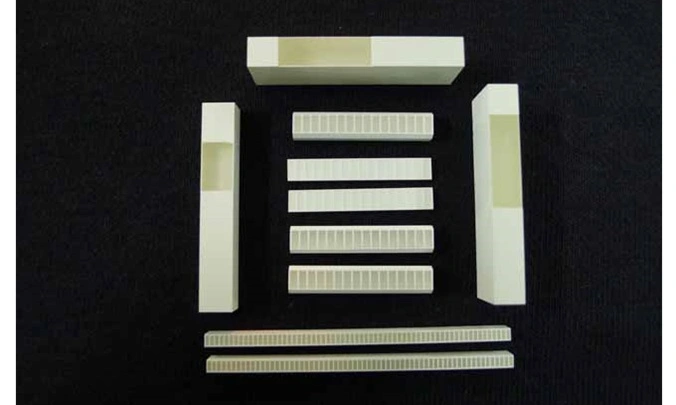

CsI(Tl) Array

CsI(Tl) Thallium-activated Cesium Iodide crystal is one of the brightest scintillator materials, it has the advantages of high density, high Gamma-ray stopping power, good energy resolution, high light output, high detection efficiency for gamma-ray and X-ray. It has no cleavage plane and good processibility, can be made into various shapes. In addition, because of its emission in the long-wavelength part of the spectrum (>500nm), it is well-suited for photodiode readout. CsI(Tl) crystals can be manufactured into linear and 2-D arrays, CsI(Tl) arrays has been widely used in X-ray security inspection systems, non-destructive testing, food inspection and other applications.


OST photonics is able t o supply CsI(Tl) linear arrays and CsI(Tl) 2-D arrays according to our customers' requirements. We usually use titanium dioxide (TiO2) as the reflector between each single pixel (element). The CsI(Tl) arrays produced by us has high resolution and high sensitivity characteristics, which can achieve excellent imaging quality. In addition, we can also supply low afterglow type CsI(Tl) crystal materials with afterglow of 0.05~0.39%@20ms. Low afterglow CsI(Tl) crystal not only retains the advantage of high light output of standard CsI(Tl) crystal, but also significantly inhibits the afterglow. It effectively improves the problem of afterglow trailing in the scanning radiation imaging system and improves the imaging quality. It is very suitable for the imaging system which requires high imaging quality and fast scanning.


Application of CsI(Tl) Array


  • Security inspection

  • Industrial level gauge

  • High energy physics

  • Nuclear imaging


Advantages of CsI(Tl) Array


  • High density

  • High Gamma-ray stopping power

  • Good energy resolution

  • High light output

  • Emission wavelength at 550 nm

  • Compatible with photodiode readout


Specifications of CsI(Tl) Array


  • Linear array: 1x8; 1x16; 1x32; 1x64 etc. (customized upon request)

  • 2-D array: 6x10; 12x18; 24x36 etc. (customized upon request)

  • Minimal pixel size: 0.3 mm x 0.3 mm


Reflector Types and Thicknesses of CsI(Tl) Array


Material

Thickness of reflector material + adhesive

TiO2

≥0.1 mm

Teflon

0.15 - 0.5 mm


Different Scintillator Material Types of CsI(Tl) Array


Type

Relative Light Output of NaI(Tl)

Decay time

Afterglow

Standard type

45%

1000 ns

0.5~5%@6ms

Low afterglow type

40%

1000 ns

0.05~0.39%@20ms


Properties of CsI(Tl) Crystal


Relative Light Output of NaI(Tl) (%)

40% low afterglow; 45 standard

Scintillation Decay Time (ns)

1000

Emission Peak Wavelength (nm)

550

Refractive Index (peak wavelength)

1.80

Density(g/cm3)

4.51

Hygroscopic

Slight

Mohs hardness

2

Afterglow

0.05~0.39%@20ms low afterglow; 0.5~5%@6ms standard

Light yield (photons/keV)

48 low afterglow; 54 standard


Quality Control for CsI(Tl) Array


  • Dimension testing

  • Relative light output testing

  • Pixel light output uniformity testing

  • Energy resolution testing

  • Scatter map
