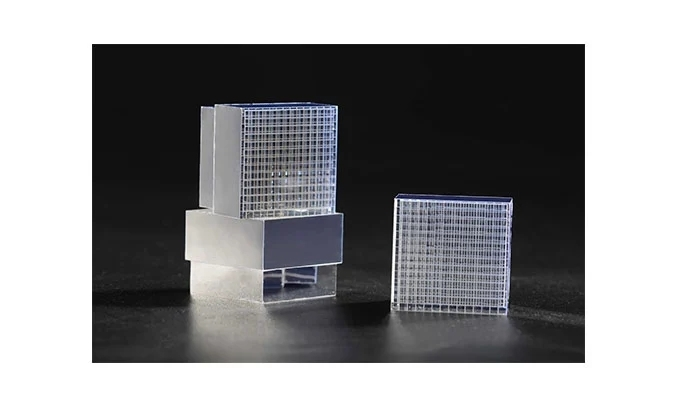

lyso array
lyso array

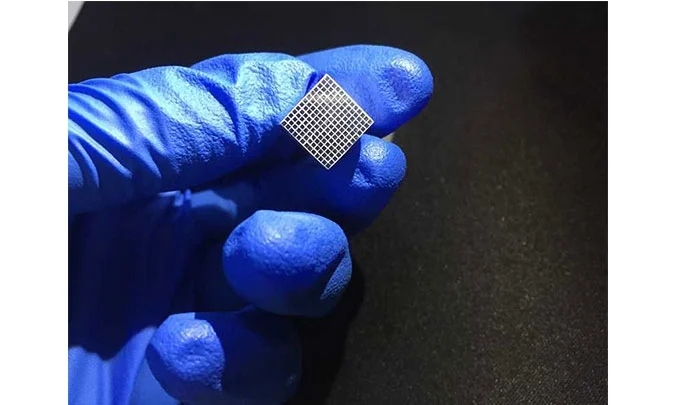

lyso ce array

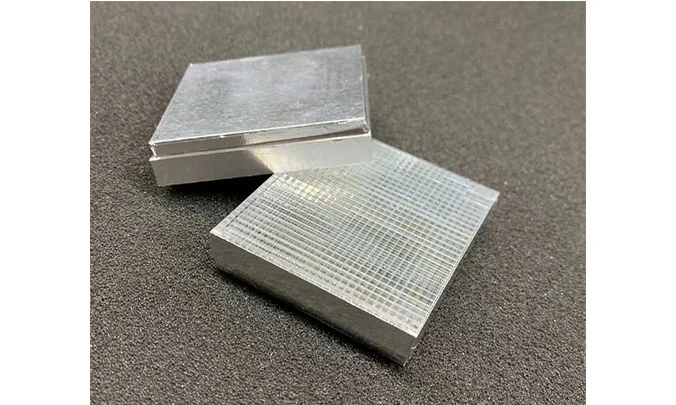

lyso crystal array

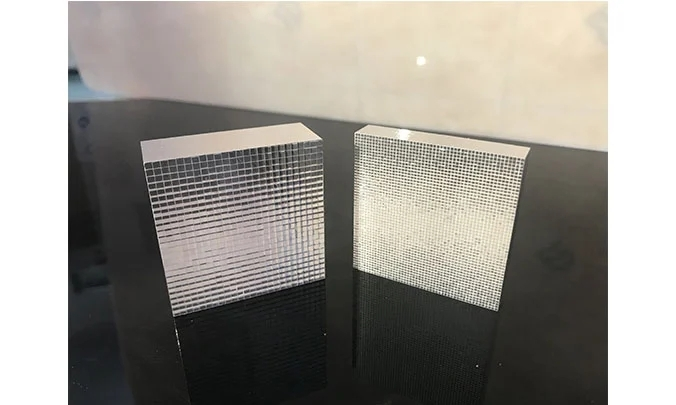

lyso ce crystal array

LYSO(Ce) Array

LYSO(Ce) Ce doped Yttrium lutetium silicate crystal has the advantages of high density, high light yield, fast decay time and high energy resolution. The gamma-ray detector made of LYSO(Ce) crystal has a very wide application prospect in the fields of nuclear medicine imaging, high energy physics, nuclear physics and so on. It is the core detection component of the new generation Positron Emission Tomography (PET).


OST Photonics can manufacture LYSO(Ce) arrays according to our customers' different design options in terms of pixel size, the number of pixels, reflector materials and crystal surface finishes. Our 2-D LYSO(Ce) arrays are usually used with pixelated photodiodes, position sensitive photo multiplier tubes (PSPMT) and silicon photomultipliers (SiPM). We offer a variety of design options and reflector materials to optimize the array performance for the special application. Our manufacturing process can ensure high light output as well as excellent pixel to pixel uniformity with minimal crosstalk. Furthermore, offset LYSO(Ce) arrays (multilayer LYSO(Ce) arrays) are also available upon requests.


Application of LYSO(Ce) Array


  • Positron emission tomography-computed tomography (PET-CT)

  • Nuclear magnetic resonance imaging(NMRI)

  • Single photon emission computed tomography(SPECT)

  • High energy physics


Advantages of LYSO(Ce) Array


  • High energy resolution

  • Fast decay time

  • High light output

  • High density


Specifications of LYSO(Ce) Array


  • Number of pixels: 4x4; 8x8; 16x16; 20x20; 52x52 etc. (customized upon request)

  • Minimal pixel size: 0.2 mm x 0.2 mm


Reflector Types and Thicknesses of LYSO(Ce) Array


Material

Thickness of reflector material + adhesive

BaSO4

≥0.1 mm

ESR

0.08 mm

E60

0.075 mm

TiO2

≥0.1 mm


Different Types of LYSO(Ce) Crystal


Type

Light yield

Decay time

Standard type

32000 photons/keV

40-44 ns

Fast Decay time type

29000 photons/keV

32-34 ns


Properties of LYSO(Ce) Crystal


Product Type

Standard type

Fast decay time type

Density (g/cm3)

7.4

7.4

Radiation Length (cm)

1.10

1.10

Effective Atomic Number

66

66

Decay Constant (ns)

40-44

32-34

Light Yield (photons/keV)

32000

29000

Index of Refraction

1.82

1.82

The wavelength of Max Emission (nm)

420

420

Melting Point (°C)

2050

2050

Hardness (Mohs)

5.8

5.8

Cleavage

No

No

Hygroscopicity

No

No


Quality Control for LYSO(Ce) Array


  • Dimension testing

  • Relative light output testing

  • Pixel light output uniformity: ≤10%;≤20%;≤30% or on request

  • Energy resolution testing

  • Scatter Map
