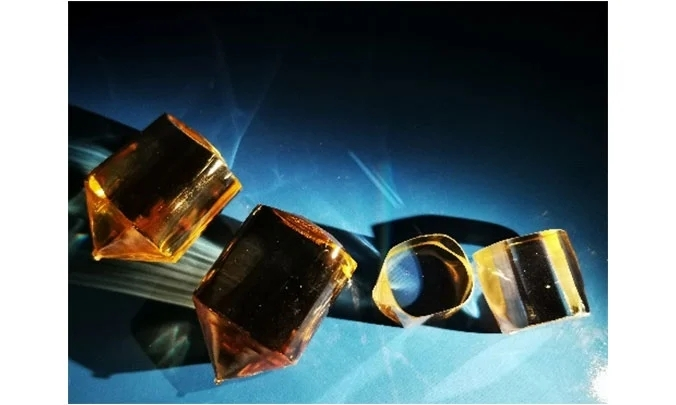

YVO4 Substrates

Yttrium Vanadate (YVO4) crystals have good mechanical and physical properties and are ideal for optical polarizing components because of their wide transparency range and large birefringence. Yttrium Vanadate(YVO4) is a positive uniaxial crystal grown with Czochralski method. It is an excellent synthetic substitute for Calcite (CaCO3) and Rutile (TiO2) crystals in many applications including fiber optic isolators and circulators, interleavers, beam displacers and other polarizing optics.


OST Photonics offers high quality YVO4 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of YVO4 Substrates


  • Rochon prism

  • Color filter

  • Polarizing optics

  • Optical modulator


Advantages of YVO4 Substrates


  • Large birefringence coefficient

  • Large absorption coefficient

  • Good transmission from 400nm to 4000nm

  • High damage threshold


Ability of YVO4 Substrates


  • Orientation:<100>,<001>,<111>,<110>, etc.

  • Dimension: 5x5mm, 10x10mm, 15x15mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrates, blanks and customized optics


Specification and Properties of YVO4 Substrates



Crystal System

Tetragonal, D4h

Growth Method

Czochralski

Crystal Lattice Constant

a=b=7.119 Å, c=6.289 Å

Melting Point

1825 ℃

Density

4.22 g/cm3

Hardness

5 Mohs

Transmission Range

400-4000 nm

Thermal Expansion Coefficient

∥A: 13.7x10^-6 /°C; ∥C: 11.4x10^-6 /°C @ 20°C

Thermal Conductivity

∥C: 5.23 w/m/K; ⊥C: 5.10 w/m/K

Specific Heat

590 J/kg·K

Solubility in Water

<0.0002 g/100g  @ 0-60 ℃

Refractive Index

no = 1.9721, ne= 1.2.1856 @ 0.8 µm

Orientation

<100>,<001>,<111>,<110>, etc.

Orientation Tolerance

±0.5° or better

Dimension

5x5mm, 10x10mm, 15x15mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Surface Roughness

Ra<5Å (5µmx5µm)

Package

Class 100 clean bag, Class 1000 super clean room
