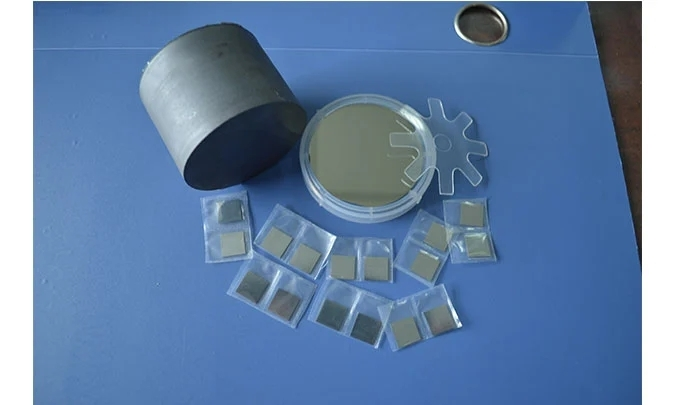

ge crystal

Germanium Substrates

Germanium single crystal wafers are an important semiconductor substrate material. These high-quality substrates are primarily used in CPV, outer-space solar-cell panel and high-bright light-emitting diode applications.


OST Photonics offers high quality germanium substrates for researchers and industries. There are four types of germanium materials for you to choose from: undoped Ge, N-type Ge (As doped), N-type Ge (Sb doped) and P-type Ge (Ga doped). Crystal orientation, size and thickness can be customized according to your requirements.


Application of Germanium Substrates


  • Infrared optical device

  • Semiconductor device

  • Consumer electronics

  • Solar cell panels


Advantages of Germanium Substrates


  • Excellent machinability

  • Corrosion resistance

  • Stable chemical properties

  • Good hole mobility and electron mobility

  • Small band gap


Ability of Germanium Substrates


  • Orientation:<100>,<110>,<111>, etc.

  • Dimension: 2", 3", 4", 6", 5x5mm, 10x5mm, 10x10mm, 20x20mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: wafers, substrates, blanks and customized optics


Specification and Properties of Germanium Substrates


Growth Method

Czochralski

Crystal Structure

Cubic

Crystal Lattice Constant

a=5.65754 Å

Density

5.323g/cm3

Melt Point

937.4℃

Conduct Type

N-type

P-type

/

Dopant

As,Sb

Ga

undoped

Resistivity

0.005-30 ohm.cm

0.005-0.04 ohm.cm

>35 ohm.cm

Etch Pit Density (EPD)

<4000 /cm2

<4000 /cm2

<4000 /cm2

Orientation

<100>,<110>,<111>, etc.

Orientation Tolerance

±0.5° or better

Dimension

2", 3", 4", 6", 5x5mm, 10x5mm, 10x10mm, 20x20mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Surface Roughness

Ra<5Å (5µmx5µm)

Package

Class 100 clean bag, Class 1000 super clean room
