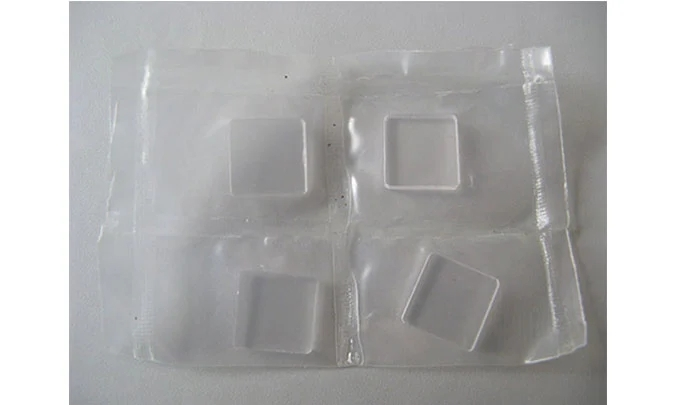

OST Photonics NaCl Substrates

NaCl single crystal substrates is ideal for growing expitaxila film and studying interface diffusion and defects. The film is easily removed from NaCl substrate by floating it off on water or by dissolving away the underlying substrate. NaCl is very sensitive to moisture, and must be stored in desiccator box.


OST Photonics offers high quality NaCl substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of NaCl Substrates


  • Infrared devices

  • optical instruments

  • Spintronic devices


Advantages of NaCl Substrates


  • Uniform, bright and high transmittance within 0.250-20 μm when thickness less than 10 mm

  • No impurity absorption


Ability of NaCl Substrates


  • Orientation:<100>,<110>,<111>, etc.

  • Dimension: 1”, 2”, 10x10mm, 20x20mm, etc.

  • Thickness: 0.5mm, 1.0mm, 2mm, 5mm, etc.

  • Available items: windows, substrates, blanks and customized optics


Specification and Properties of NaCl Substrates


Crystal Structure

Cubic

Growth Method

Czochralski

Lattice Constant

a=5.642Å

Melting Point

801 ℃

Density

2.16 g/cm3

Transmission Range

0.25-22.00 μm

Refractive Index

1.54427

Optical Transmission

90% @ 0.25-20 μm

Hygroscopy

Water-soluble crystals susceptible to moisture and cannot be chemically polished

Orientation

<100>,<110>,<111>, etc.

Orientation tolerance

±0.5-2°

Dimension

1”, 2”, 10x10mm, 20x20mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, 2mm, 5mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Surface Quality

S/D 80/50 or better

Roughness

≤30 nm

Package

Class 100 clean bag, Class 1000 super clean room
