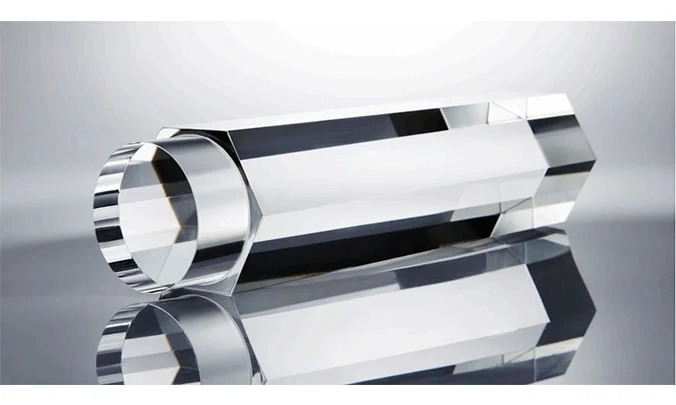

BaF2 Scintillators

BaF2 barium fluoride crystal is the scintillation crystal with the fastest decay time found so far, it has a fast component with a scintillation decay time of 0.9ns and a peak emission wavelength of 220nm. BaF2 scintillator has a wide application prospect in the fields of high energy physics, nuclear physics and nuclear medicine.


OST Photonics can supply BaF2 crystals in different specifications upon your request.


Application of BaF2 Scintillators (Barium Fluoride Scintillators)


  • High energy physics

  • Nuclear physics

  • Nuclear medicine

  • UV and IR optical windows


Advantages of BaF2 Scintillators (Barium Fluoride Scintillators)


  • Fastest decay time

  • High density

  • Refractive index matching


The Ability of OST Photonics


  • Maximum Size: ɸ120mm x 200mm

  • Available items: monolithic crystal


Properties of BaF2 Scintillators (Barium Fluoride Scintillators)


Density (g/cm3)

4.89

Melting Point (℃)

1280

Crystal Structure

Cubic

Decay Constant (ns)

620 slow; 0.6 fast

Cleavage Plane

(111)

Index of Refraction

1.4624@2.58μm / 1.3936@10.35μm

Reflection Loss (both surfaces)

6.8% @2.58μm / 5.3% @10.35μm

The wavelength of Max Emission (nm)

310 slow; 220 fast

Hardness (Mho)

3

Hygroscopicity

Slightly

Radiation Length (mm)

20.6

Light Output of NaI(Tl)

20% slow; 4% fast

Transmittance Range (μm)

0.15~14

Transmittance

>94% @0.35 ~ 10.8μm
