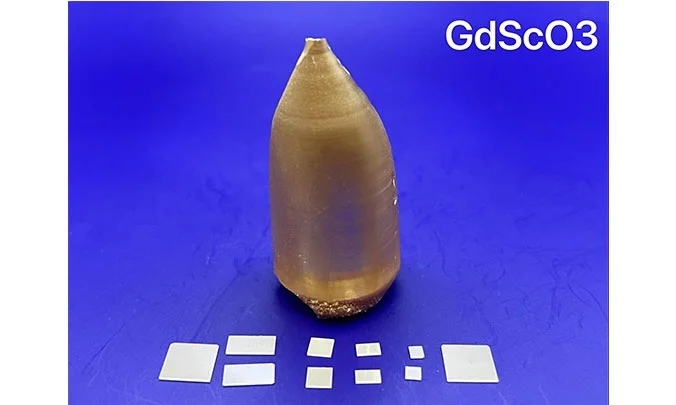

GdScO3 Substrates

GdScO3 crystals have a good lattice match with perovskite superconductors and are excellent ferroelectric thin film substrate materials.


OST Photonics offers high quality GdScO3 substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of GdScO3 Substrates


  • Substrate material for ferroelectric thin film


Advantages of GdScO3 Substrates


  • Excellent ferroelectric properties


Ability of GdScO3 Substrates


  • Orientation:<110>,<001>, etc.

  • Dimension: 10x10mm, 10x5mm, 5x5mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrate, blanks and customized optics


Specification and Properties of GdScO3 Substrates



Growth Method

Czochralski

Crystal System

Orthorhombic, perovskite

Lattice Constant

a=5.45Å, b=5.75Å, c=7.93Å

Density

6.6 g/cm3

Melt Point

2127 ℃

Hardness

4 Mohs

Orientation

<110>,<001>, etc.

Orientation Tolerance

±0.5° or better

Dimension

10x10mm, 10x5mm, 5x5mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Package

Class 100 clean bag, Class 1000 super clean room
