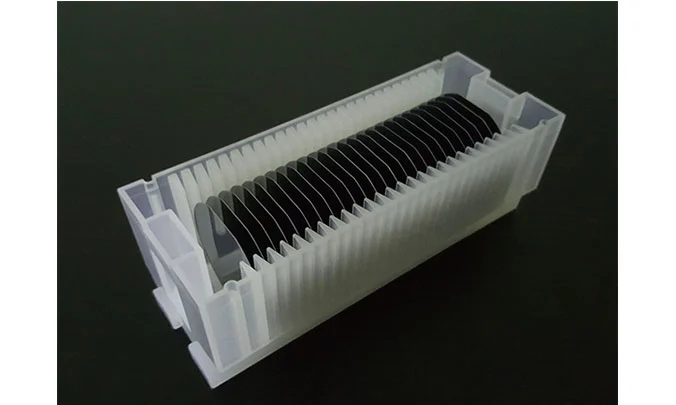

germanium wafer
germanium wafer

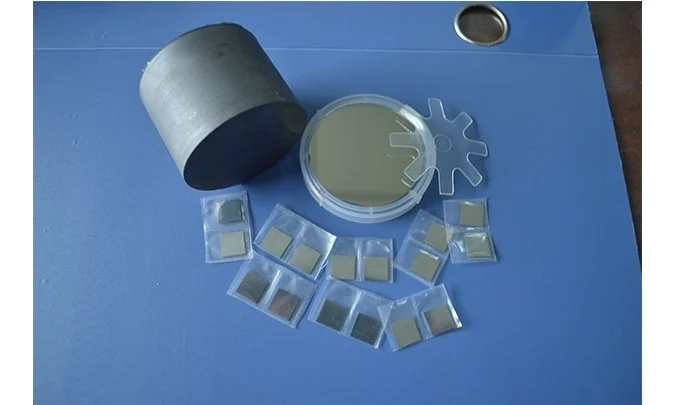

ge wafers

Germanium Wafers

Germanium single crystal wafers are an important semiconductor substrate material. These high-quality substrates are primarily used in CPV, outer-space solar-cell panel and high-bright light-emitting diode applications.


OST Photonics offers Low EPD (etch pit density) or even Zero EPD Ge wafers for semiconductor industry, germanium wafers are supplied in diameters from 2" to 6" with resistivity from 0.005 ohm.cm to over 50 ohm.cm. Monocrystalline Ge wafers are an important semiconductor material. High quality Ge substrates are used in Concentrator Photovoltaic power stations (CPV), outer-space solar cell panels and ultra-high brightness LEDs. In addition, customized germanium substrates also are available upon request.


Application of Germanium Wafers


  • Infrared optical device

  • Semiconductor device

  • Consumer electronics

  • Solar cell panels


Advantages of Germanium Wafers


  • Excellent machinability

  • Corrosion resistance

  • Stable chemical properties

  • Good hole mobility and electron mobility

  • Small band gap


Ability of Germanium Wafers


  • Orientation:<100>,<110>,<111>

  • Dimension: 2”, 3”, 4”, 6”, 10x5mm, 10x10mm, 15x15mm, 20x15mm, 20x20mm

  • Thickness: 330 μm, 430 μm, 500 μm, etc.

  • Available items: wafers, substrates, blanks, ingots and customized optics.


Product Parameters of Germanium Wafers


Item

Specifications

Crystal Growth Method

CZ

Conduct Type

N-type

P-type

/

Dopant

As,Sb

Ga

undoped

Diameter

2", 3", 4", 6"

Wafer Orientation

<100>±0.5°,<110>±0.5°,<111>±0.5°

Thickness

330 μm, 430 μm, 500 μm, etc.

Resistivity (ohm.cm)

0.005-30

0.005-0.04

>35

Etch Pit Density (EPD) (/cm2)

<300

<300

<4000

TTV (μm)

≤15

≤15

≤15

Warp (μm)

≤25

≤25

≤25

Backside Ra (μm)

<0.1

<0.1

<0.1

Surface Finish

E/E, P/E, P/D

Epi-ready

Yes

Package

Cassette or single wafer container
