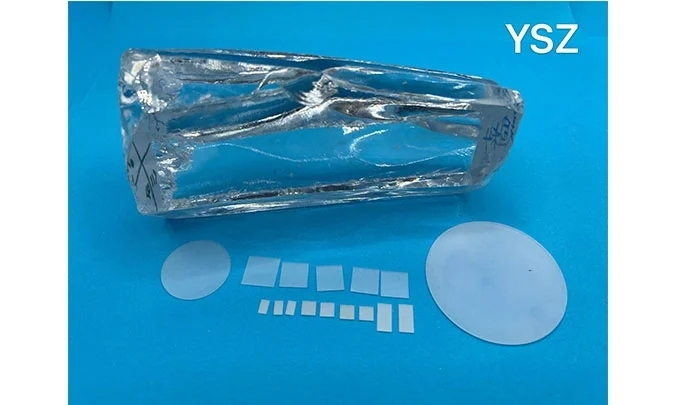

YSZ Substrates

Yttrium-doped zirconia (YSZ) single crystal substrate is one of the earliest materials used in high temperature superconducting thin films. Generally used zirconia needs to be doped with yttrium as a stabilizer, the common concentration of 13 mol%, YSZ is characterized by good mechanical and chemical stability and low cost, it has been widely used in ceramics, refractories, machinery, electronics, optics, aerospace, biology, chemistry and so on.


OST Photonics offers high quality YSZ substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of YSZ Substrates


  • Optical devices

  • Substrate material for high-temperature superconducting film

  • Electronics


Advantages of YSZ Substrates


  • Good corrosion resistance

  • Excellent optical properties

  • Good mechanical and chemical stability

  • Low cost


Ability of YSZ Substrates


  • Orientation:<100>,<110>,<111>, etc.

  • Dimension: 1”, 2”, 10x5mm, 10x10mm, 15x15mm, 20x20mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: wafers, substrates, blanks and customized optics


Specification and Properties of YSZ Substrates



Crystal System

Cubic

Growth Method

Electric-Arc fusion

Crystal Lattice Constant

a=5.147 Å

Melting Point

2700 ℃

Density

6.0 g/cm3

Hardness

8-8.5 Mohs

Purity

99.99%

Thermal Expansion Coefficient

10.3x10^-6 /℃

Dielectric Constant

ε=27

Orientation

<100>,<110>,<111>, etc.

Orientation Tolerance

±0.5° or better

Dimension

1”, 2”, 10x5mm, 10x10mm, 15x15mm, 20x20mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Surface Roughness

Ra<5Å (5µmx5µm)

Package

Class 100 clean bag, Class 1000 super clean room
